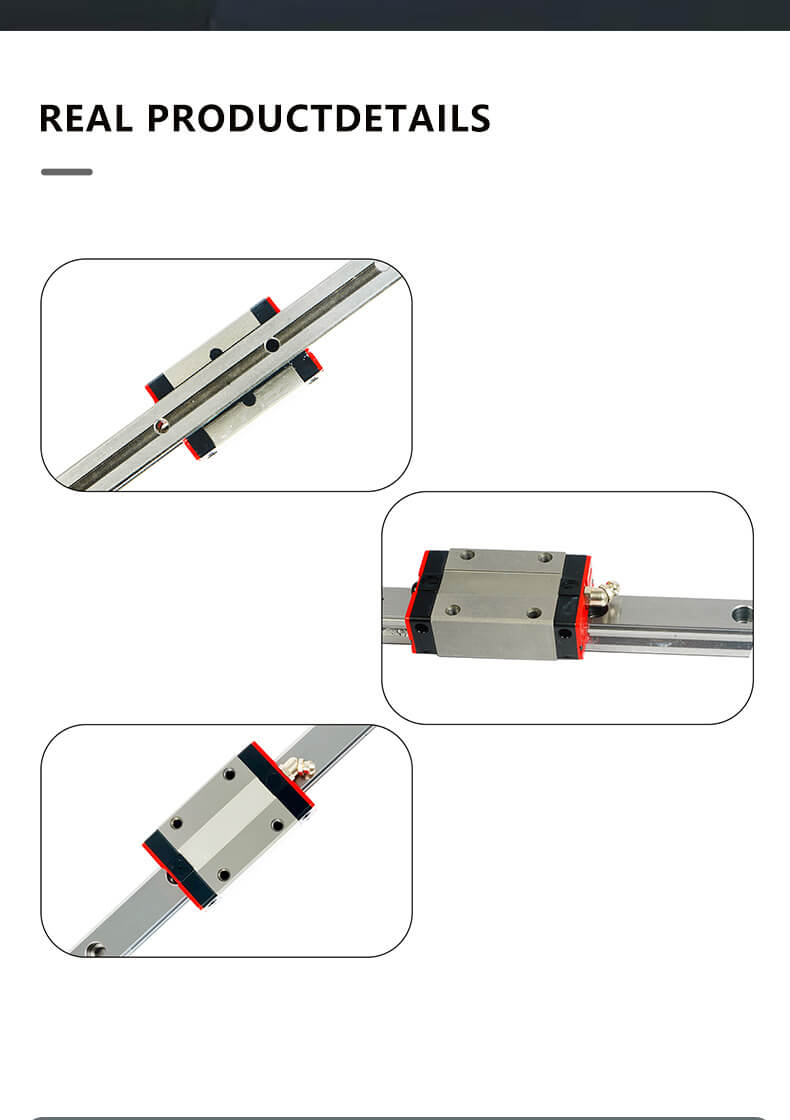

    Original Factory CNC Linear Guide Aluminum Slider High Assembly Heavy Duty Rail and Linear Bearing Block

    Short Description:

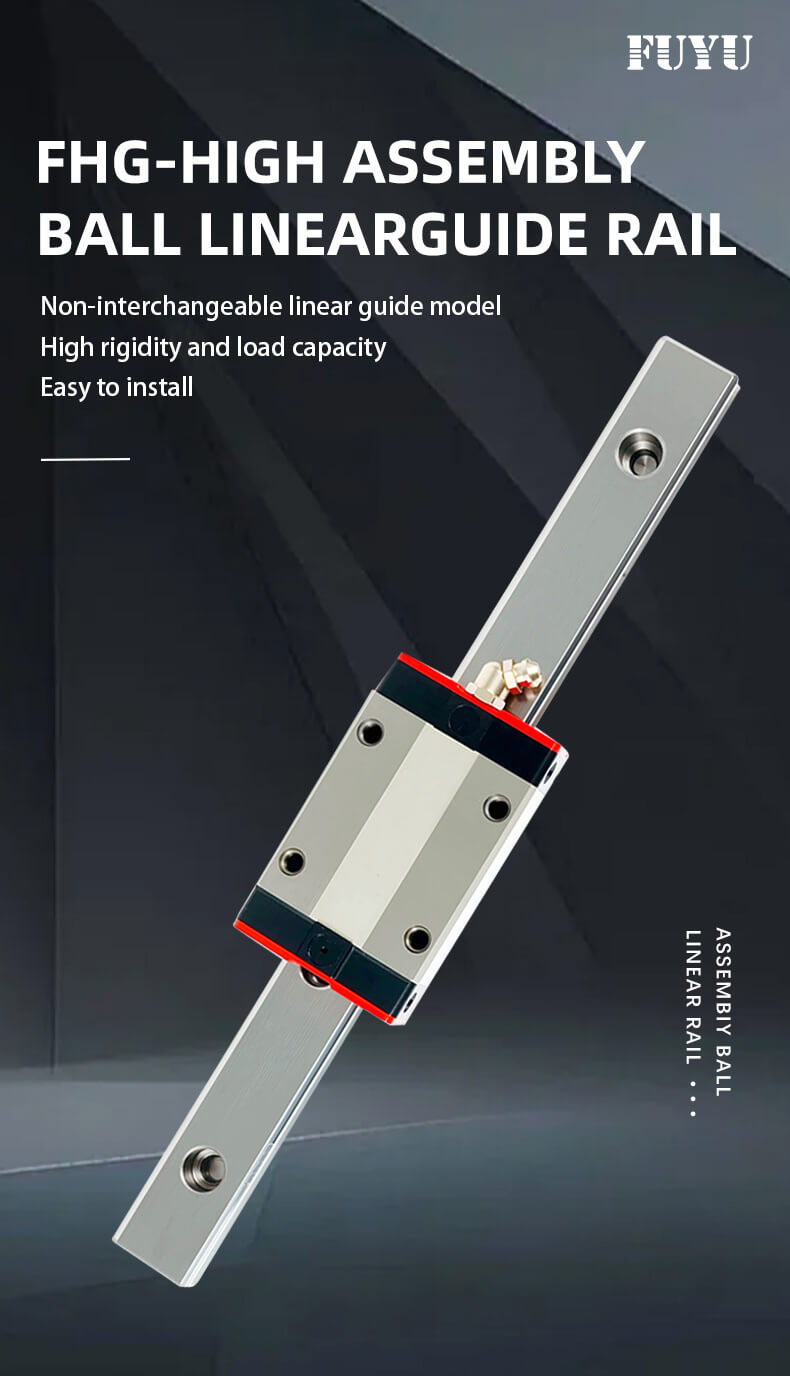

    Heavy-Duty Linear Guide Series:

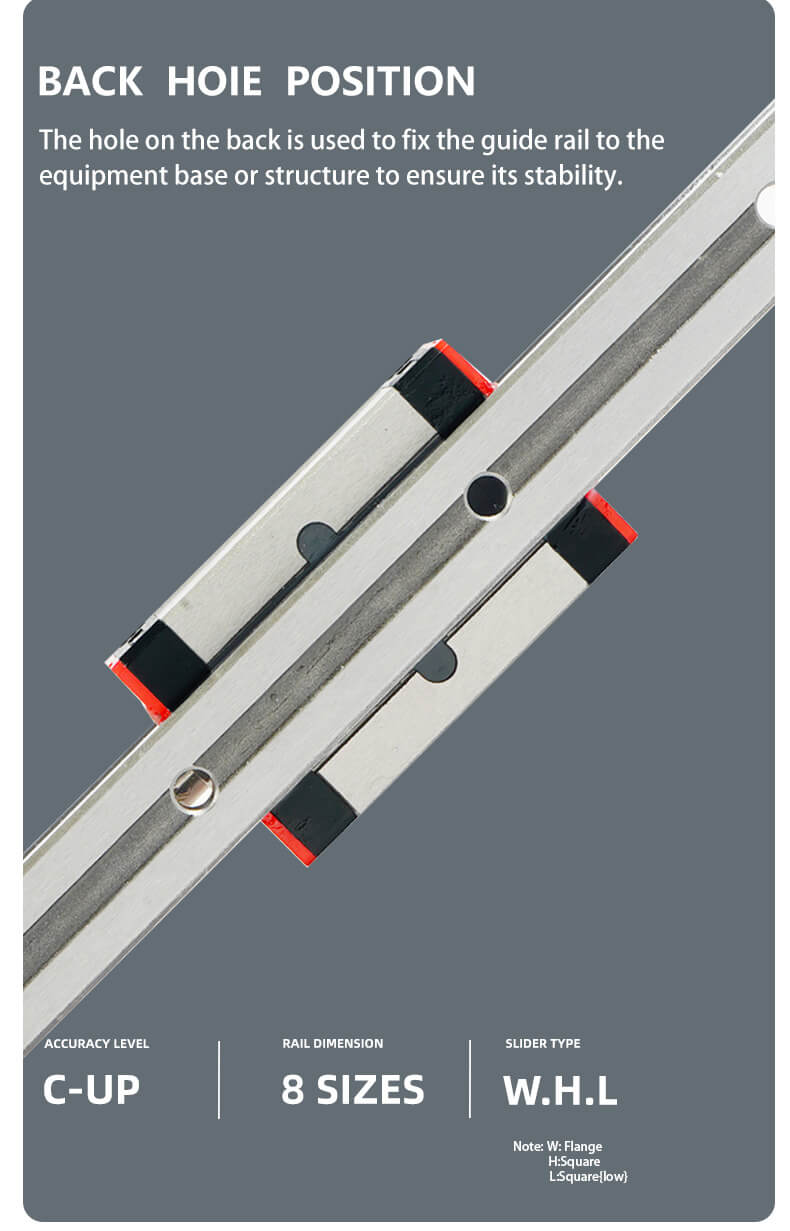

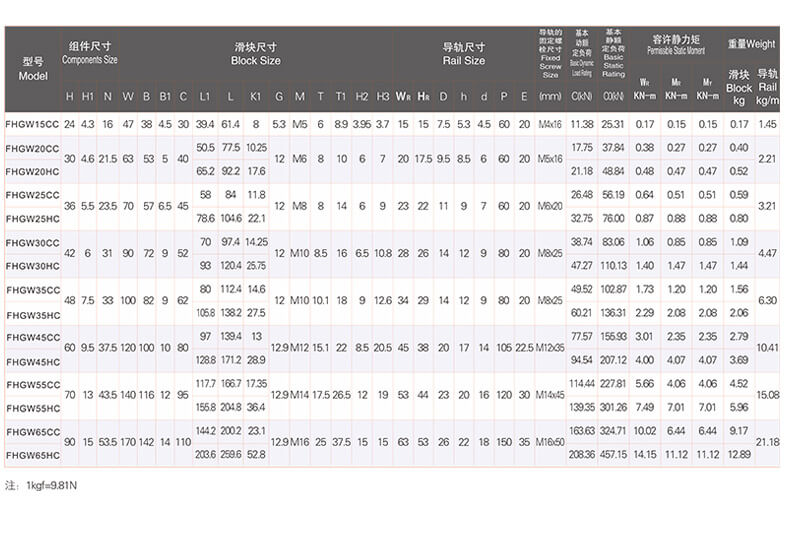

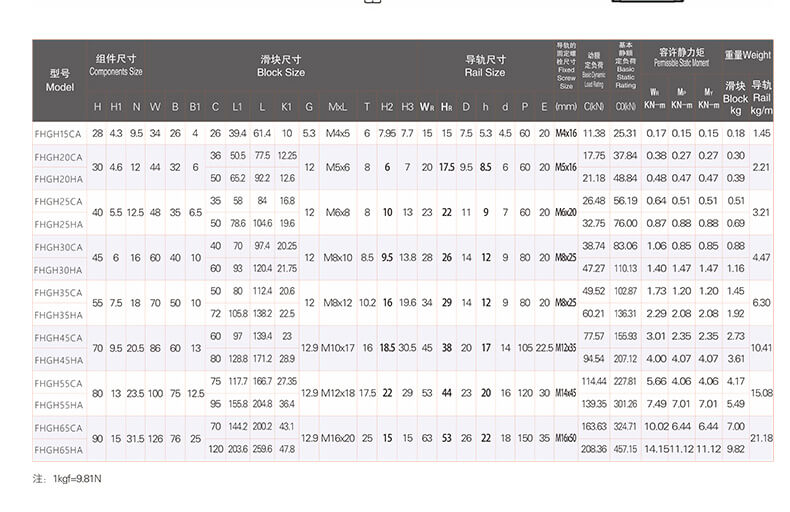

    Guide Rails: Available in high and low assembly types. High assembly models come in sizes 15, 20, 25, 30, 35, 45, 55, and 65, totaling 8 models. Low assembly models are available in sizes 15, 20, 25, 30, and 35, totaling 5 models. Combined, there are 13 different heavy-duty linear guide models.



    Extra Heavy-Duty (Roller) Series:

    Guide Rails: Available in international standard sizes of 15, 20, 25, 30, 35, 45, 55, and 65, totaling 8 models.

    Sliders: Offered in standard, extended, flange, and extended flange types. Note that the size 15 does not have an extended version. This series includes a total of 30 different configurations.



    Our Precision Linear Guide Pairs are manufactured to meet international standards, ensuring high precision, durability, and reliability. Whether you require miniature guides for compact applications or heavy-duty and extra heavy-duty guides for more demanding environments, our comprehensive product range is designed to meet your specific needs.

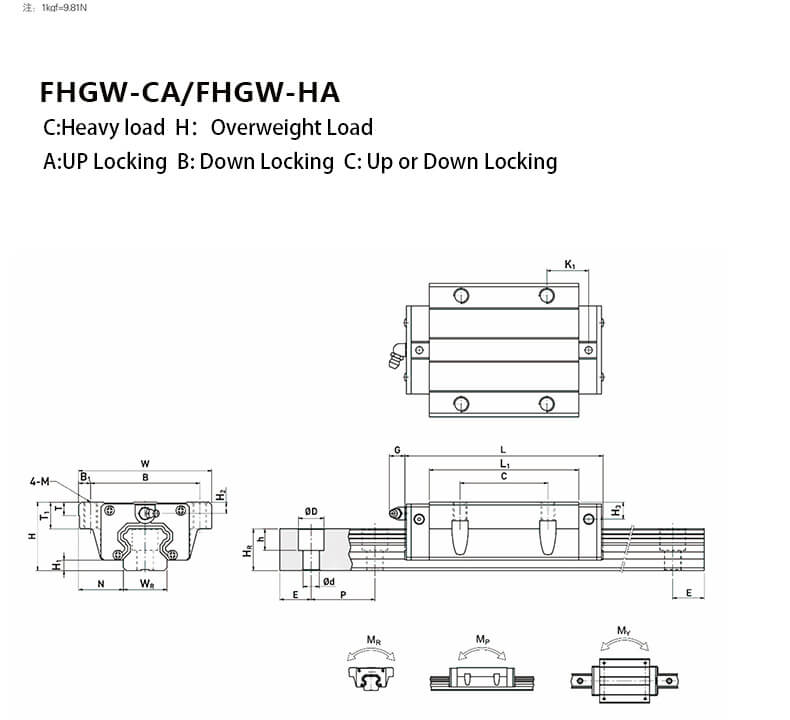

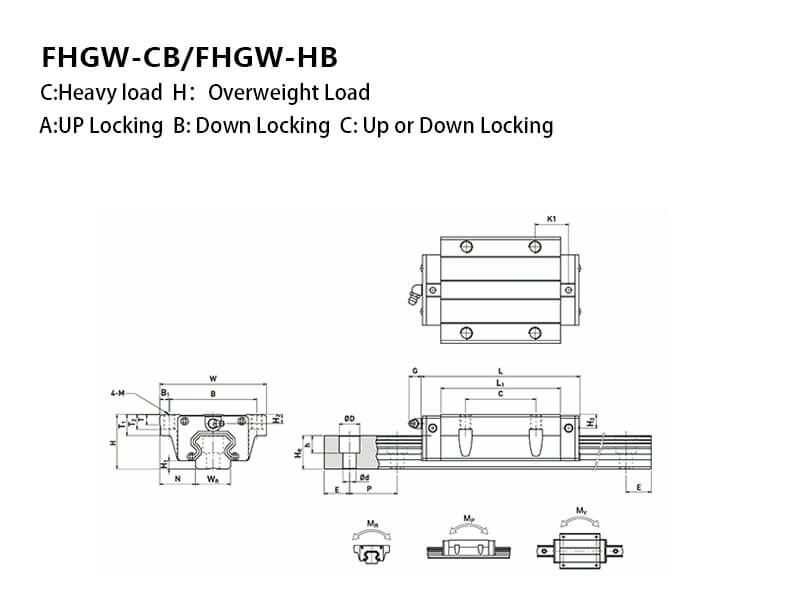

  • Model: FEG/FHG/FMG
  • Precision Grade: 0.008mm - 0.1mm
  • Rail Length: 50mm - 4000mm
  • Load Rating: 1kg - 2000kg
