Let us check out the classification of robots in detail:

1) Cartesian Robot:
Also known as: Linear Robots/XYZ robots/Gantry Robots

A Cartesian robot can be defined as an industrial robot whose three principal axes of control are linear and are at right angles to each other.

Using their rigid structure, they can carry high payloads. They can perform some functions such as pick and place, loading and unloading, material handling, and so on. Cartesian robots are also called as Gantry robots as their horizontal member supports both the ends.

Cartesian robots are also known as linear robots or XYZ robots as they are outfitted with three rotary joints for assembling XYZ axes.

Applications:

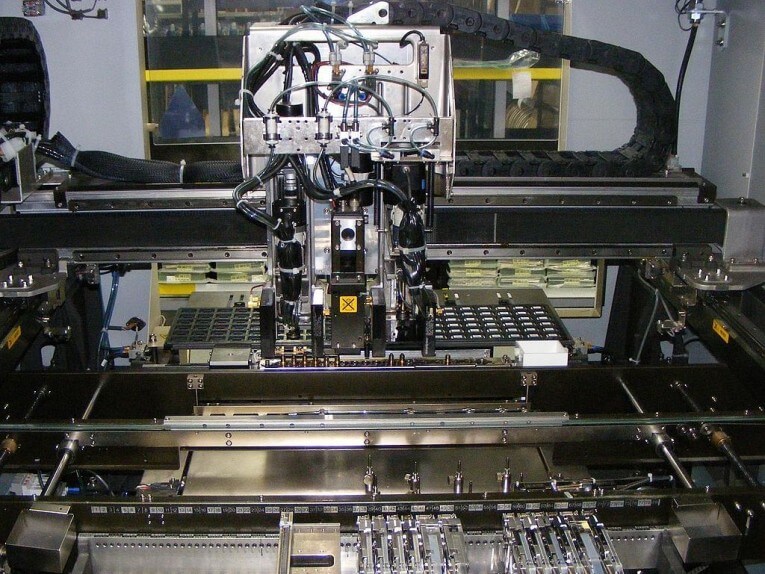

Cartesian robots can be used in sealing, handling for plastic moulding, 3D printing, and in a computer numerical control machine (CNC). Pick and place machines and plotters work on the principle of the Cartesian robots. They can handle heavy loads with  high positioning accuracy.

Advantages:

•    Highly accurate & speed
•    Less cost
•    Simple operating procedures
•    High payloads
•    Very versatile working
•    Simplifies robot and master control systems

Disadvantages:

They require a large volume of space to operate

2) SCARA Robot

The SCARA acronym stands for Selective Compliance Assembly Robot Arm or Selective Compliance Articulated Robot Arm.

The robot was developed under the guidance of Hiroshi Makino, a professor at the University of Yamanashi. The arms of SCARA are flexible in the XY-axes and rigid in the Z-axis that makes it to familiarize to holes in the XY-axes.

In the X-Y direction, the arm of SCARA robot will be compliant and strong in the ‘Z’ direction due to the virtue of the SCARA’s parallel-axis joint layout. Hence the term, Selective Compliant.

This robot is used for various types of assembly operations i.e. a round pin can be inserted in a round hole without binding using this. These robots are faster and cleaner than comparable robot systems and they are based on serial architectures, that means the first motor should carry all other motors.

Applications:
SCARA robots are used for assembly, packaging, palletisation, and machine loading.

Advantages:

•    High speed capabilities
•    Perform great in short-stroke, fast assembly and pick-and-place applications
•    It contains Donut Shaped work envelope

Disadvantages

SCARA robot typically requires dedicated robot controller in addition to line master controller like PLC/PC.

3) Articulated Robot

An Articulated robot can be defined as a robot with rotary joint and these robots can range from simple two-jointed structures to systems with 10 or more interacting joints.

These robots can reach any point as they work in three dimensional spaces. On the other hand, articulated robot joints can be parallel or orthogonal to each other with some pairs of joints parallel and others orthogonal to each other. As articulated robots have three revolute joints, the structure of these robots is very similar to the human arm.

Applications:

Articulated robots can be used in Robots palletizing food (Bakery), Manufacturing of steel bridges, cutting steel, Flat-glass handling, heavy duty robot with 500 kg payload, Automation in foundry industry, heat resistant robot, metal casting, and Spot Welding.

Advantages

•    High speed
•    Large working envelope
•    Great in unique controller, welding and painting applications

Disadvantage:

Typically requires dedicated robot controller in addition to line master controller like PLC/PC

4) Parallel Robots

Parallel robots are also known as parallel manipulators or generalized Stewart platforms.

A parallel robot is a mechanical system that uses several computer-controlled serial chains to support a single platform, or end-effector.

Furthermore, a parallel robot can be formed from six linear actuators that maintain a movable base for devices such as flight simulators. These robots prevent redundant movements and to carry out this mechanism, their chain is designed to be short, simple.

They are known as:
• High speed and high precision milling machines
• Micro manipulators mounted on the end effector of larger but slower serial manipulators
• Examples of parallel robots

Applications

•    Parallel robots are used in various industrial applications such as:
•    Flight simulators
•    Automobile simulators
•    In work processes
•    Photonics / optical fiber alignment

They are used in limit in the workspaces. To perform a desired manipulation, it would be very difficult and can lead to multiple solutions. Two examples of popular parallel robots are the Stewart platform and the Delta robot.

Advantages

•    Very high speed
•    Contact lens shaped working envelope
•    Excels in high speed, lightweight pick and place applications (candy packaging)

Disadvantages

It requires dedicated robot controller in addition to line master controller like PLC/PCs

Programming of robots to perform a required position:

Robots are programmed by humans to perform complicated and required tasks. Here, let us check out how robots are programmed to carry out the required position:

Positional Commands: A robot can perform the required position using a GUI or text based commands in which the essential X-Y-Z position may be specified and edited.

Teach Pendant: Using a teach pendant method, we can teach the positions to a robot.

Teach pendent is a handheld control and programming unit that contain the capability to manually send the robot to a desired position.

A teach pendant can be disconnected after the completion of programming. But, the robot runs the program, which was fixed in controller.

Lead-by-the-nose: Lead-by-the-nose is a technique which will be included by many robot manufacturers. In this method, one user holds the robot’s manipulator, while another person enters a command that helps to de-energize the robot which will make it to go into limp.

Then, user can move the robot to the required position (by hand) while the software records these positions into memory. Several robot manufacturers use this technique for performing paint spraying.

Robotic Simulator: A robotic simulator helps not to depend on the physical operation of the robot arm. Following this method helps to save time in the design of robotics applications and enhances the safety level. On the other hand, programs (which are written in various programming languages) can be tested, run, taught, and debugged using the robotic simulation software.

Machine Operator: A machine operator can be used to make adjustments within a program. These operators use touch-screen units that serve as the operator control panel.
