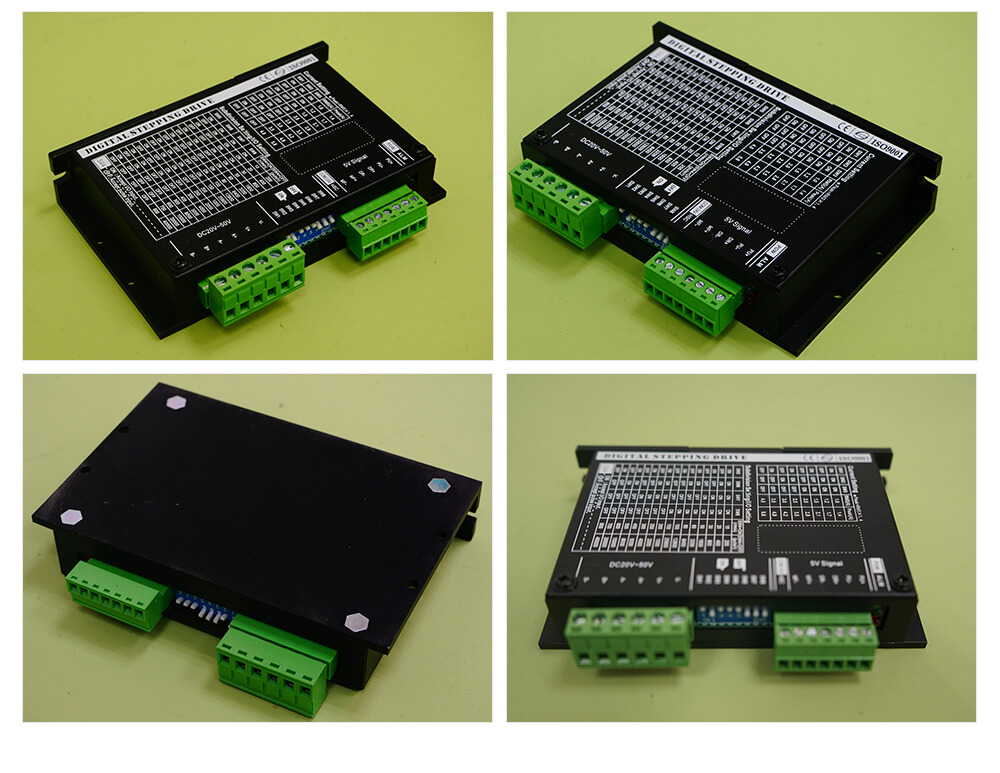

Nema23 Stepper Motor Driver FMDD50D40NOM Linear Motion

Short Description:

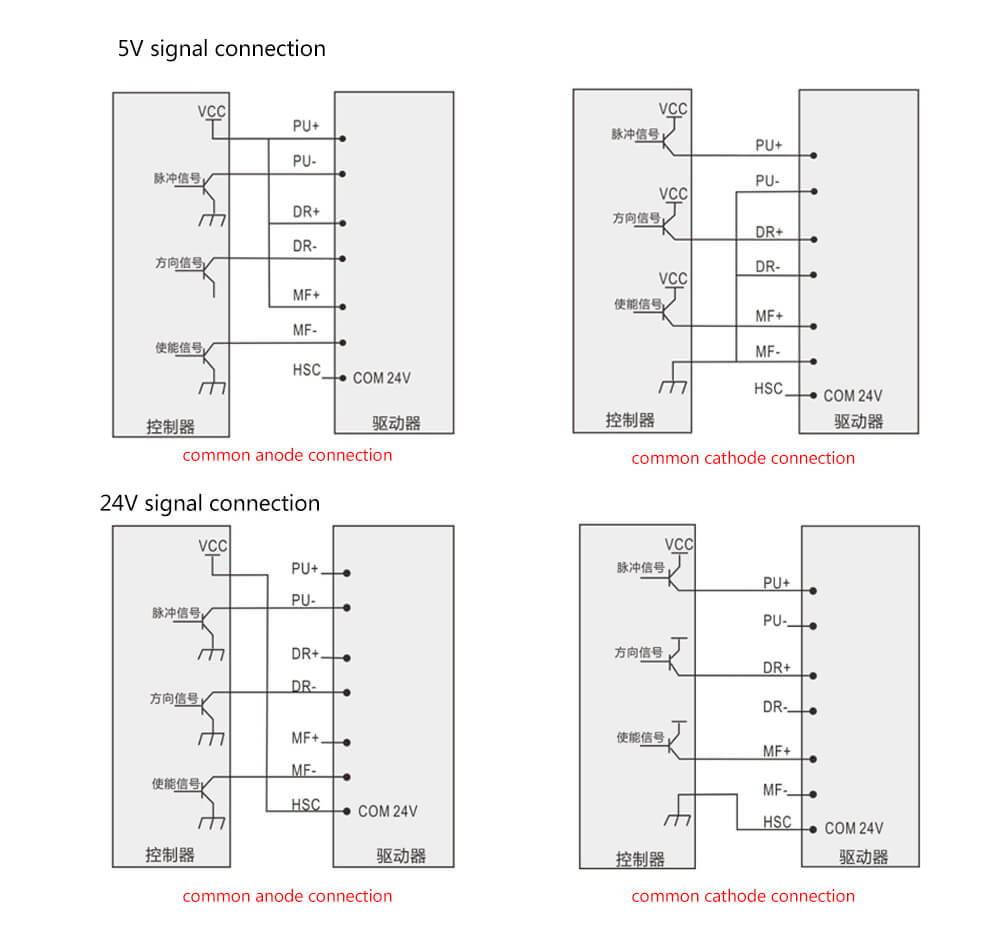

FMDD50D40NOM is a new type of stepper driver successfully developed by the companyaccording to market demand and development trend. It adopts a new 32-bit motor con-trol dedicated DSP chip, so that the motor runs more smoothly and is not easy to losesteps.Receive input signal pulse, direction and enable input. When using the internalposition, the pulse and direction interface can be used for sensor signal input, accepting485 control operation.The heating degree and vibration amplitude of the motor are min-imized, thereby better improving the processing speed and precision of mechanical op-eration.

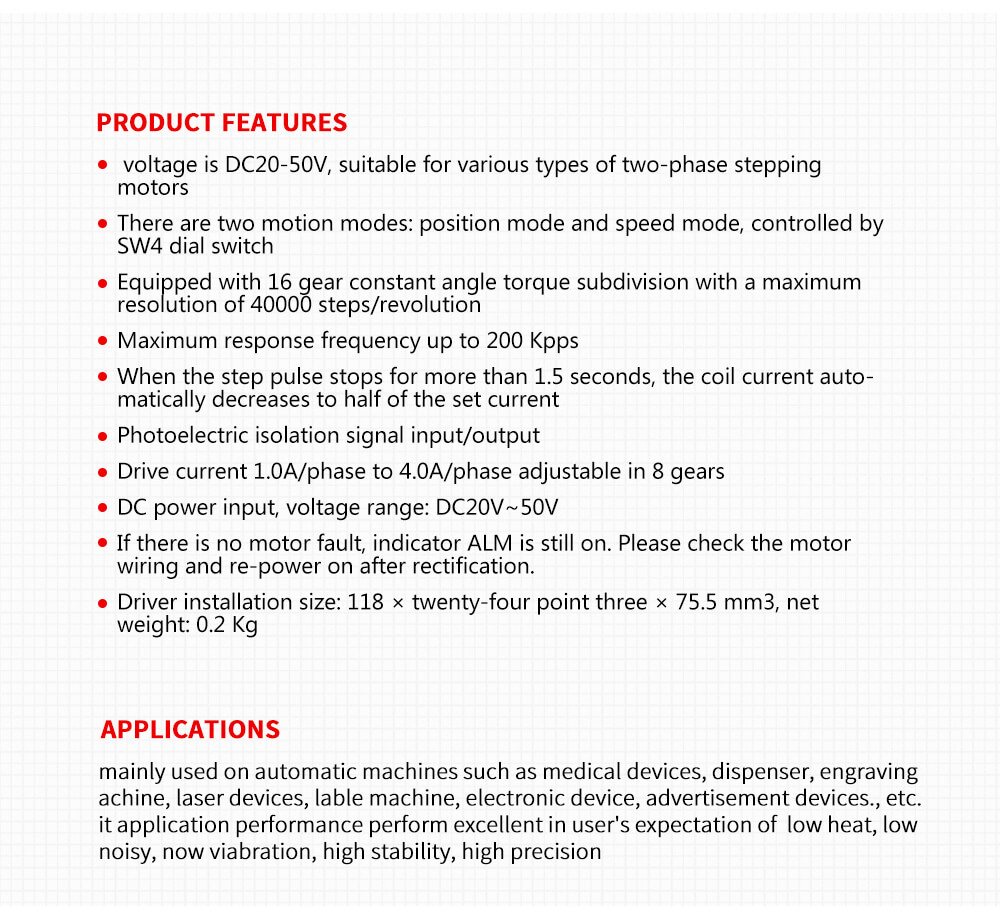

PRODUCT FEATURES
1. voltage is DC20-50V, suitable for various types of two-phase steppingmotors
2. There are two motion modes: position mode and speed mode, controlled bysw4 dial switch
3. Equipped with 16 gear constant angle torque subdivision with a maximumresolution of 40000 steps/revolution
4. Maximum response frequency up to 200 Kpps
5. When the step pulse stops for more than 1.5 seconds, the coil current auto-matically decreases to half of the set current
6. Photoelectric isolation signal input/output
7. Drive current 1.0A/phase to 4.0A/phase adjustable in 8 gears.DC power input, voltage range: DC20V~5oV
8. If there is no motor fault, indicator ALM is still on. Please check the motorwiring and re-power on after rectification.

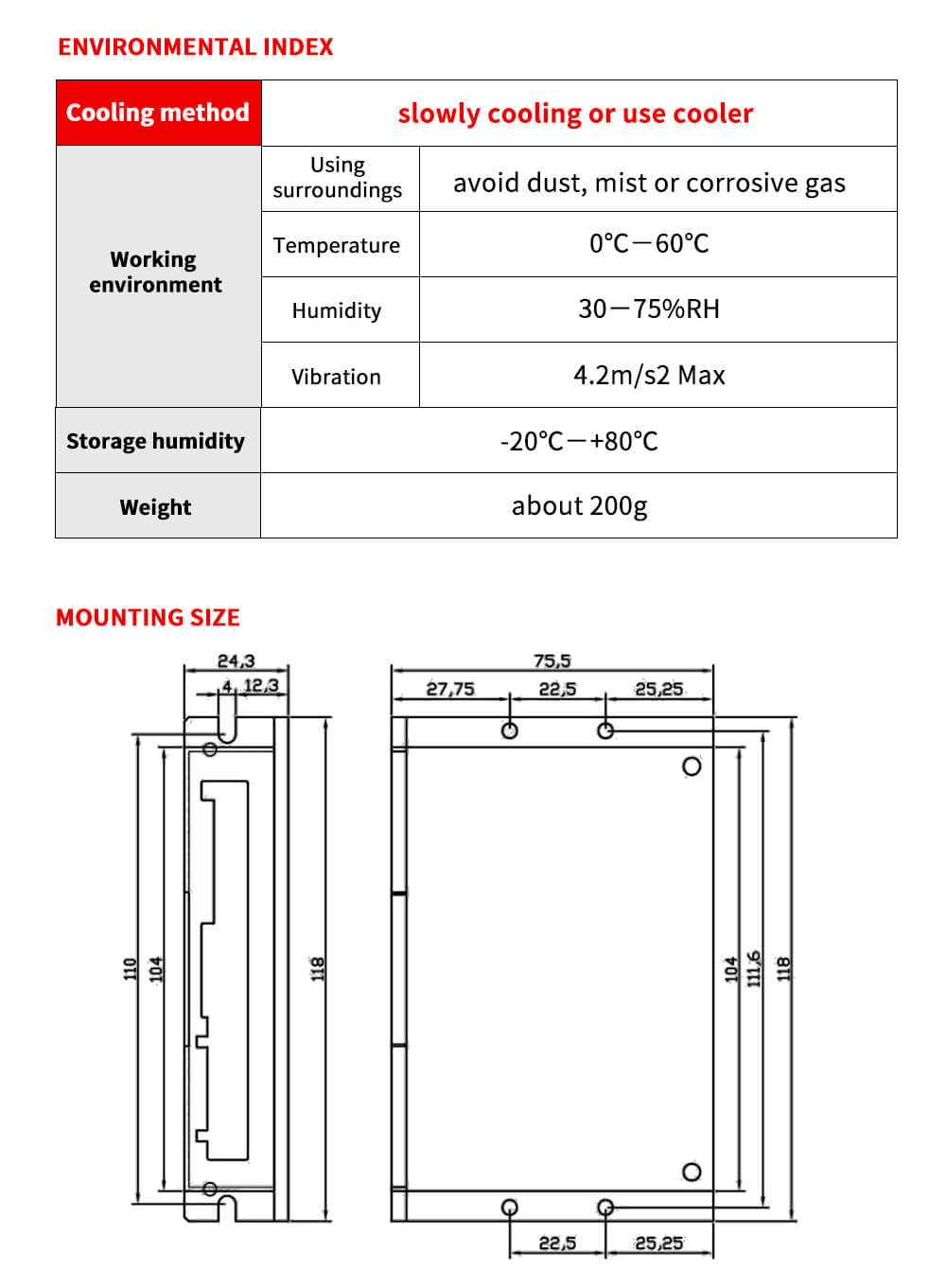

9. Driver installation size: 118 x twenty-four point three x 75.5 mm3, netweight: 0.2 Kg
APPLICATIONS
mainly used on automatic machines such as medical devices, dispenser, engravingachine, laser devices, lable machine, electronic device, advertisement devices., etc.it application performance perform excellent in user’s expectation of low heat, lownoisy, now viabration, high stability, high precision
