    Manufacturer Brand Customized Curved Linear Guide Arc Rail Circle Carriage Circular Slider with Bearing Block for CNC Machine

    Short Description:

    Key Features and Benefits:

    Superior Arc Uniformity: Our state-of-the-art rotational processing technology guarantees that the arc profiles are consistently precise, offering better performance compared to international competitors.

    High Precision: Engineered to meet the most stringent standards, our Precision Arc Cross Pairs deliver exceptional accuracy, making them ideal for applications requiring exact angular positioning.

    Wide Application: These components are extensively used in high-end angular positioning stages, which are critical in various advanced manufacturing and precision engineering processes.

    Applications:

    Arc Guide Rail are particularly well-suited for industries and applications that demand high accuracy and reliability, such as:

    Advanced Manufacturing: Ensuring precise angular positioning in complex machining tasks.

    Precision Engineering: Providing reliable performance in high-accuracy measurement and alignment systems.

    High-End Angular Positioning Stages: Enhancing the performance and reliability of equipment used in critical applications.

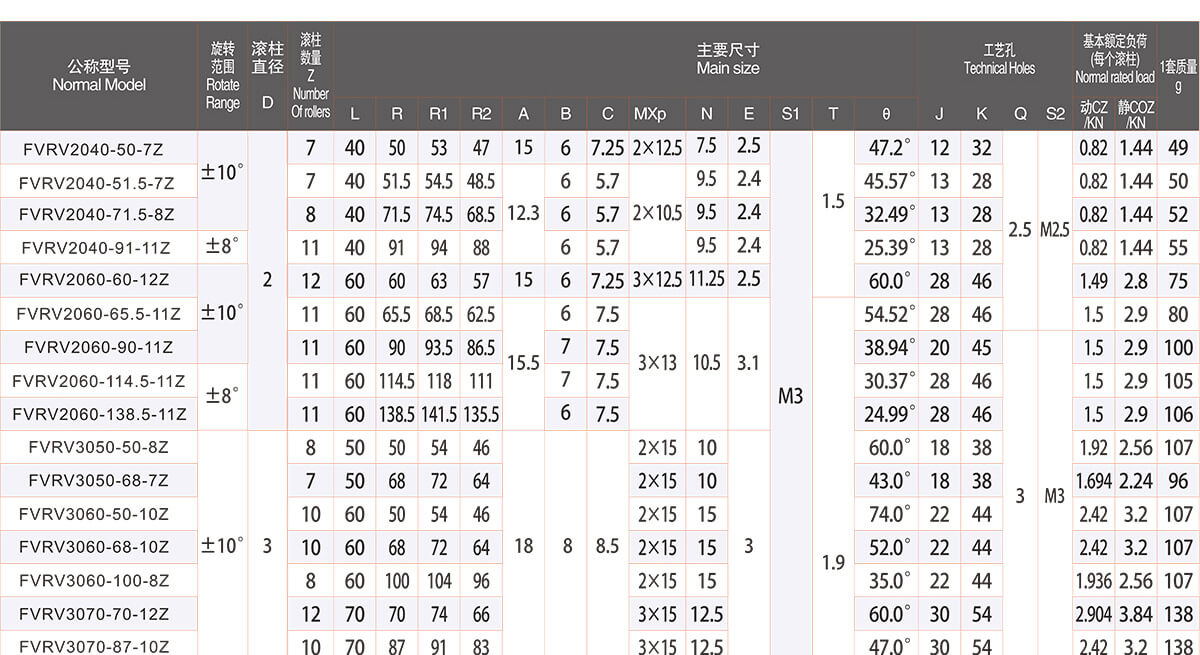

  • Model: FYRV2040/2060
  • Rotate Option: 5°/7°/8°/10°
  • Length Range: 40mm - 100mm
  • Rated Load: 1kg - 90kg
  • Product Detail

    Company Profile

    Curved-Guide-Rail_01 Curved-Guide-Rail_02 Curved-Guide-Rail_03 Curved-Guide-Rail_04 Curved-Guide-Rail_05 Curved-Guide-Rail_06 Curved-Guide-Rail_07 Curved-Guide-Rail_08Low-Assembly-Rail-Guide_10 Low-Assembly-Rail-Guide_11

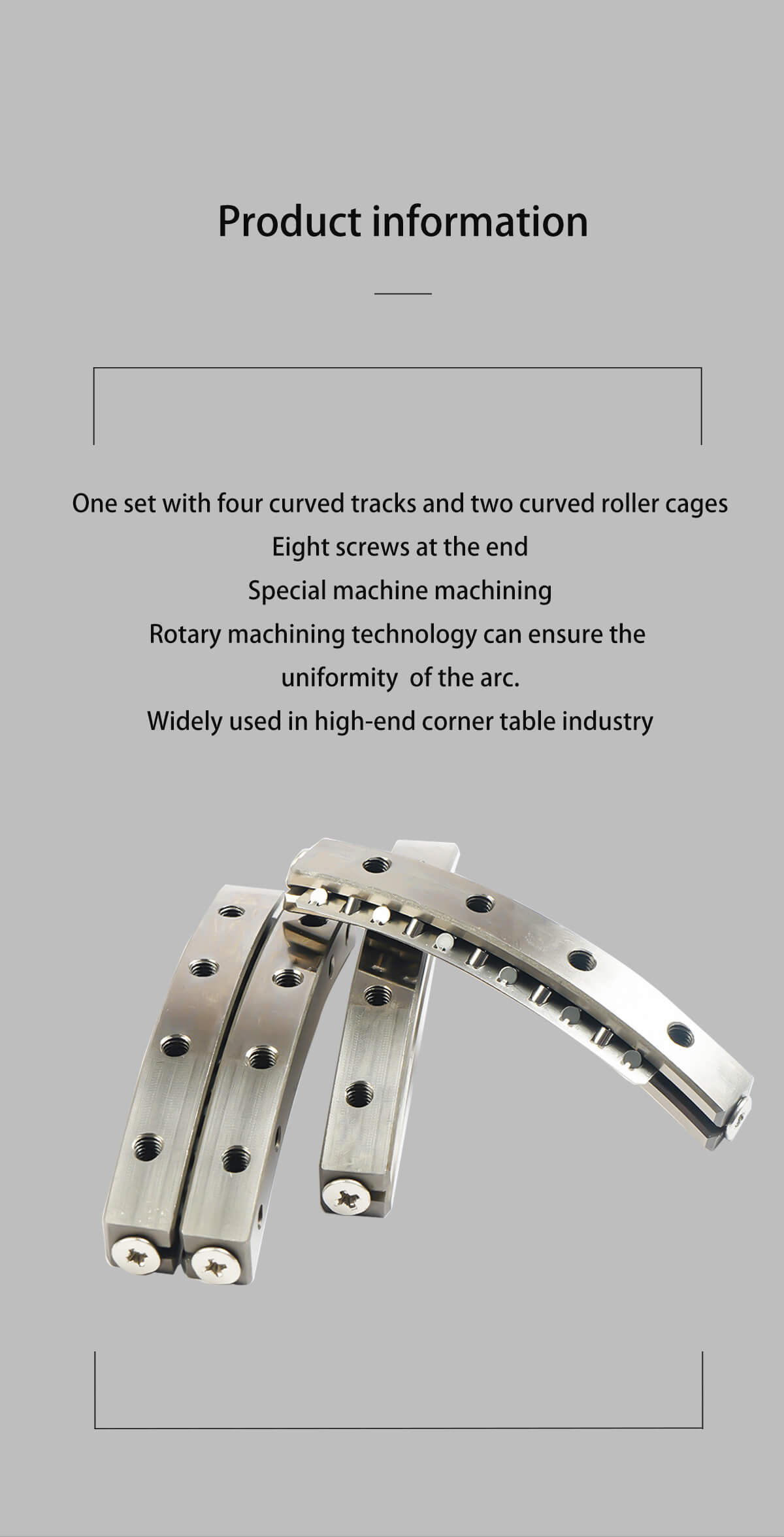

    Arc Guide Rail are specialized components designed for dedicated machining and rotational processing applications. Our advanced manufacturing techniques ensure that the uniformity and precision of the arc profiles surpass those of international brands. These high-precision components are widely utilized in the high-end angular positioning stage industry, where accuracy and reliability are paramount.
