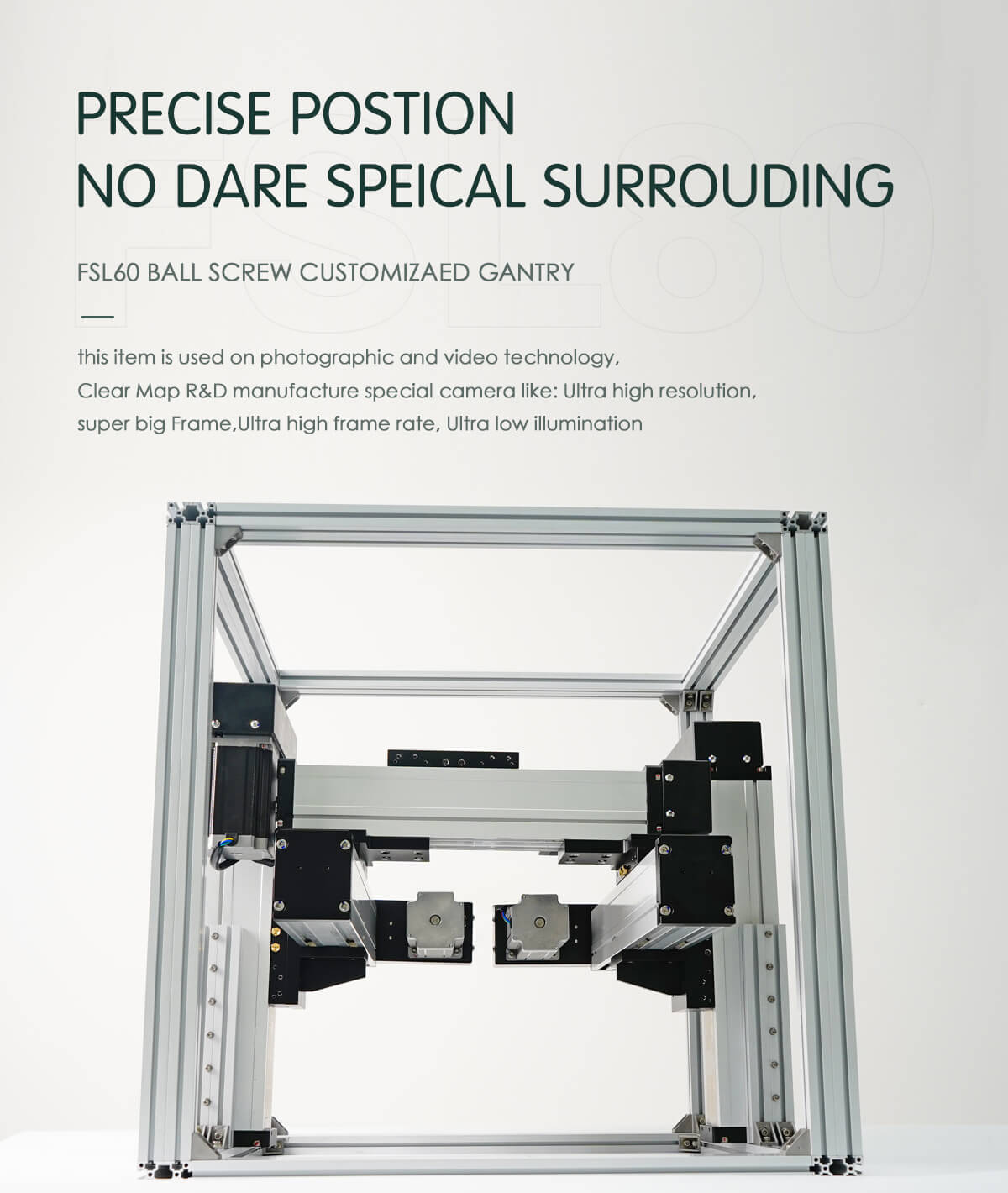

Linear Motion Guide Gantry Robot Positioning System

Short Description:

Technical Feature

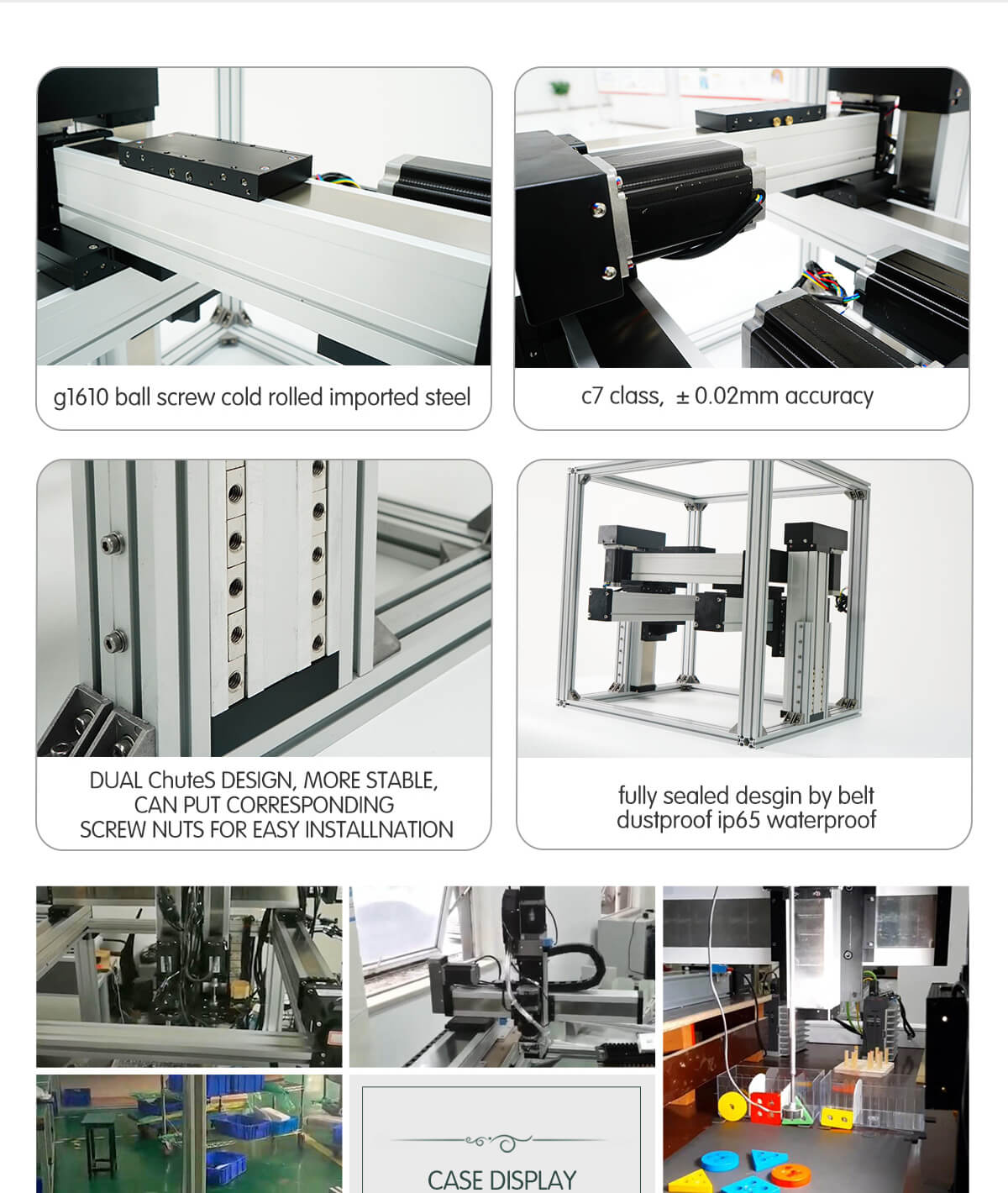

FSL60 linear guide, fully sealed structure, body width 60mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous debris fall into body structure to affect working, large stretch,small compression,hard object collision without deformation, oleic acid resistance, high temperature resistance, long service life.

Range of Application

It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dust free workshops or special fields such as electronics and medical equipment, such as film, Discount, IC printing, CCD online testing, solder automation equipment.

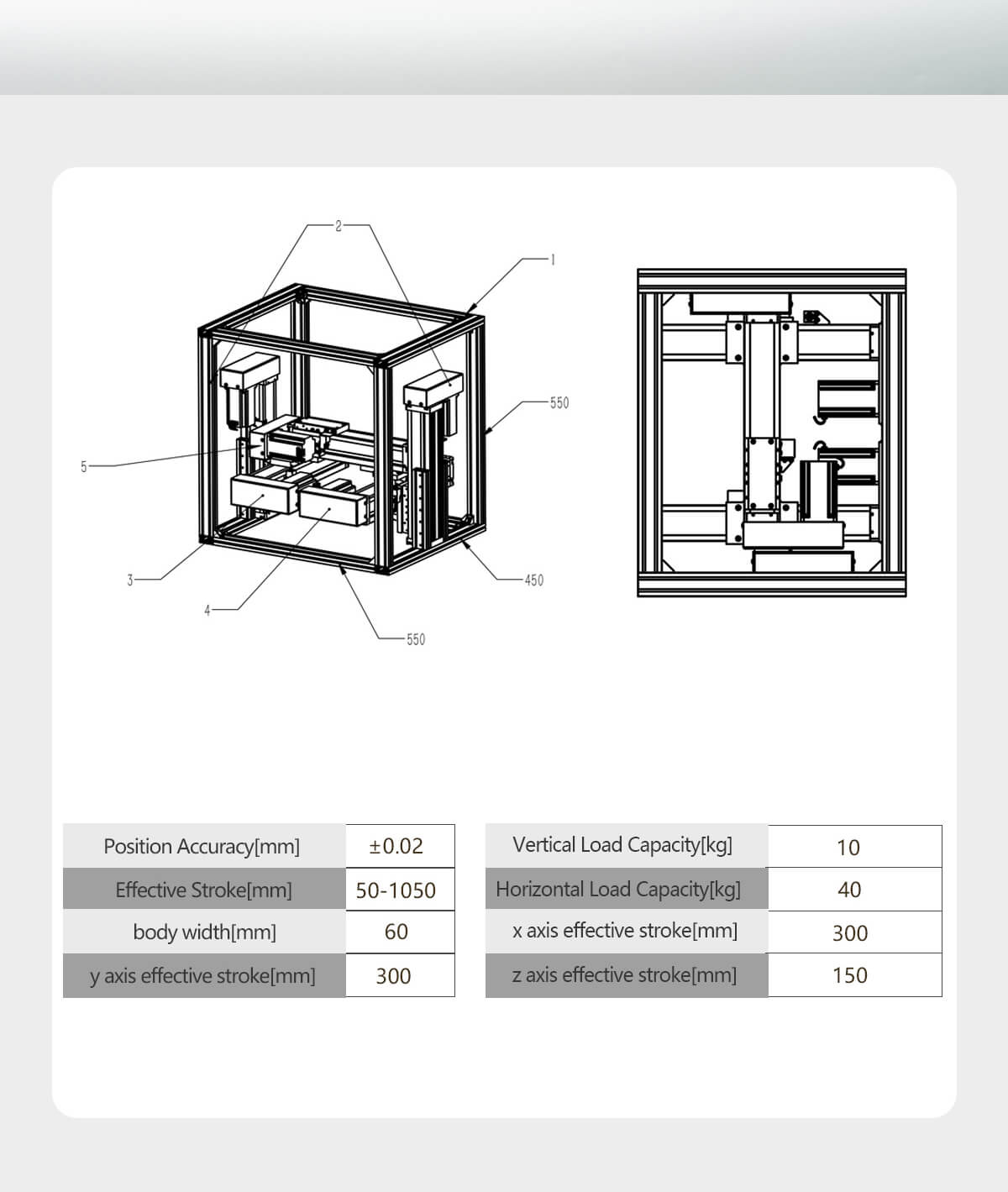

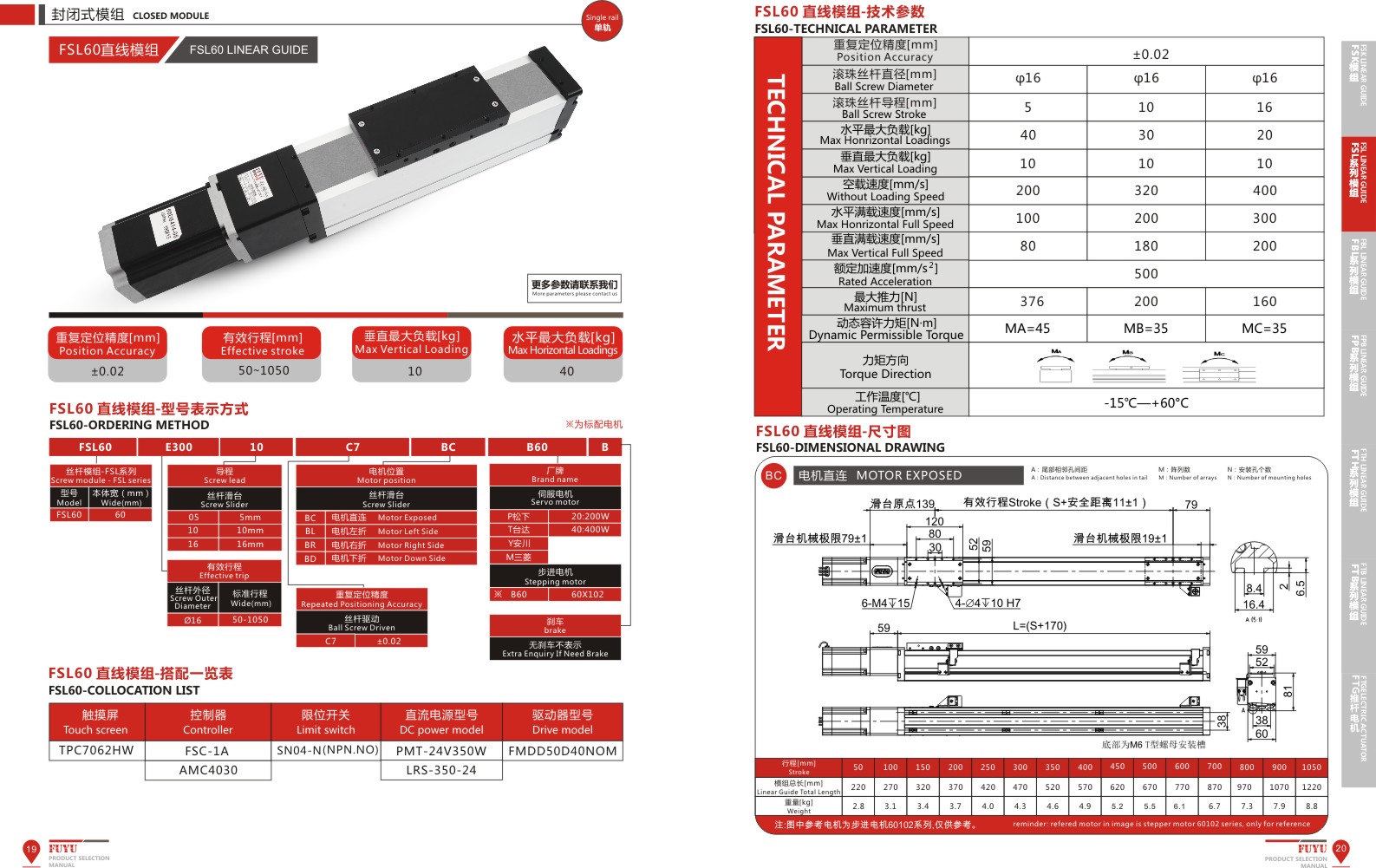

Series: FSL60IS-GS

Type: Ball Screw

Stroke Range: 1050mm

Reapted Position Accuracy: 0.02mm

Full Load Speed: 400mm/s

Max Load: 40kg

Send email to us Download To PDF Play video

Product Detail

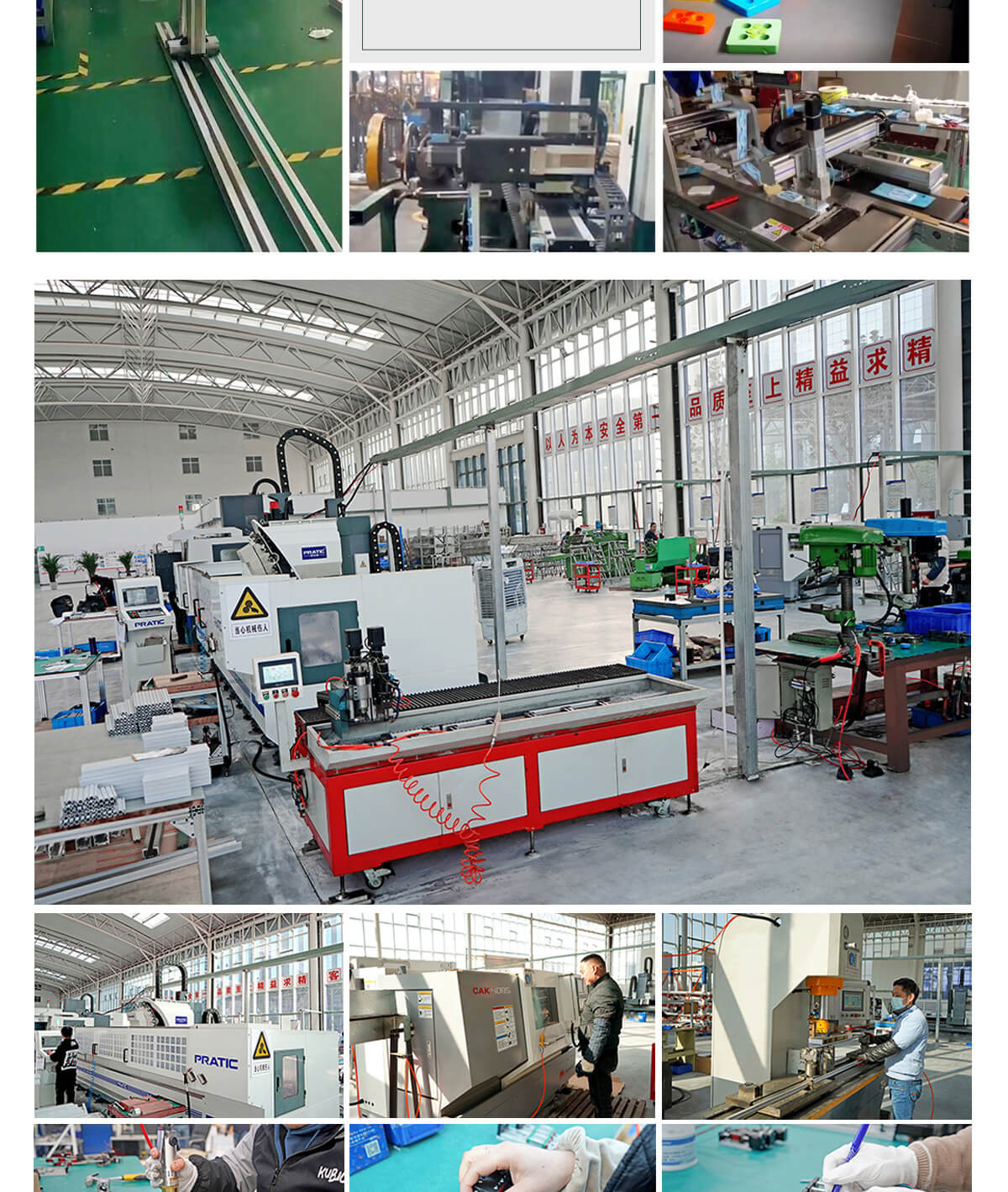

Company Profile

Previous: XY Linear Positioning Stage 2 Axis Ball Screw

Next: Multi-axis Motion Table Linear Gantry System Vertical XYZ Stage

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU Technology is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Multi-axis Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, IP65, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-4000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
