Linear Gantry Stage XYZ Positioning System High Speed Ball Screw Module Long Stroke Rail Guide

Short Description:

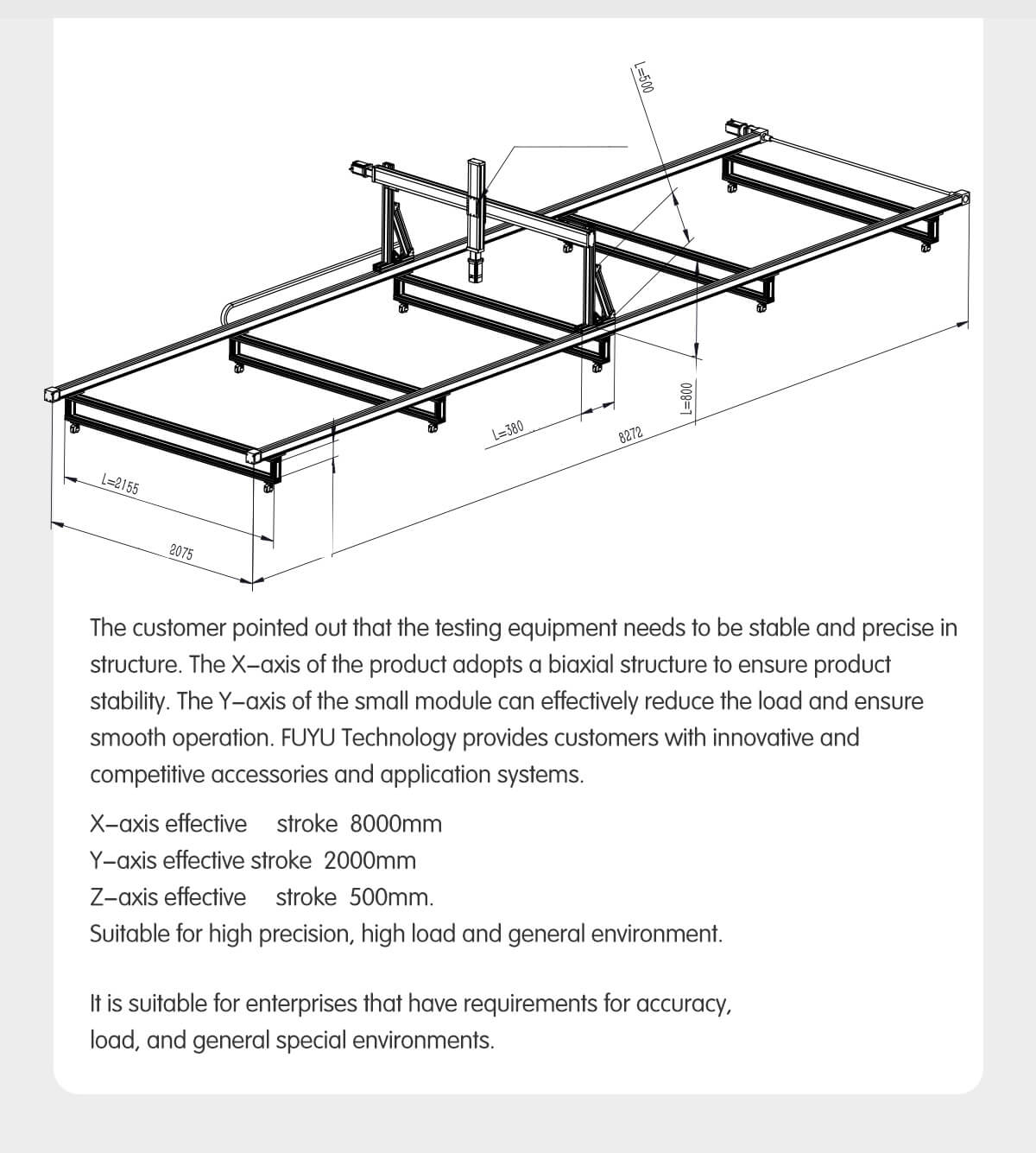

The customer pointed out that the testing equipment needs to be stable and precise instructure. The X-axis of the product adopts a biaxial structure to ensure product stability. The Y-axis of the small module can effectively reduce the load and ensuresmooth operation. FUYU Technology provides customers with innovative and competitive accessories and application systems.
X-axis effective stroke 8000mm
Y-axis effective stroke 2000mmZ-axis effective stroke 500mm.
Suitable for high precision, high load and general environment.

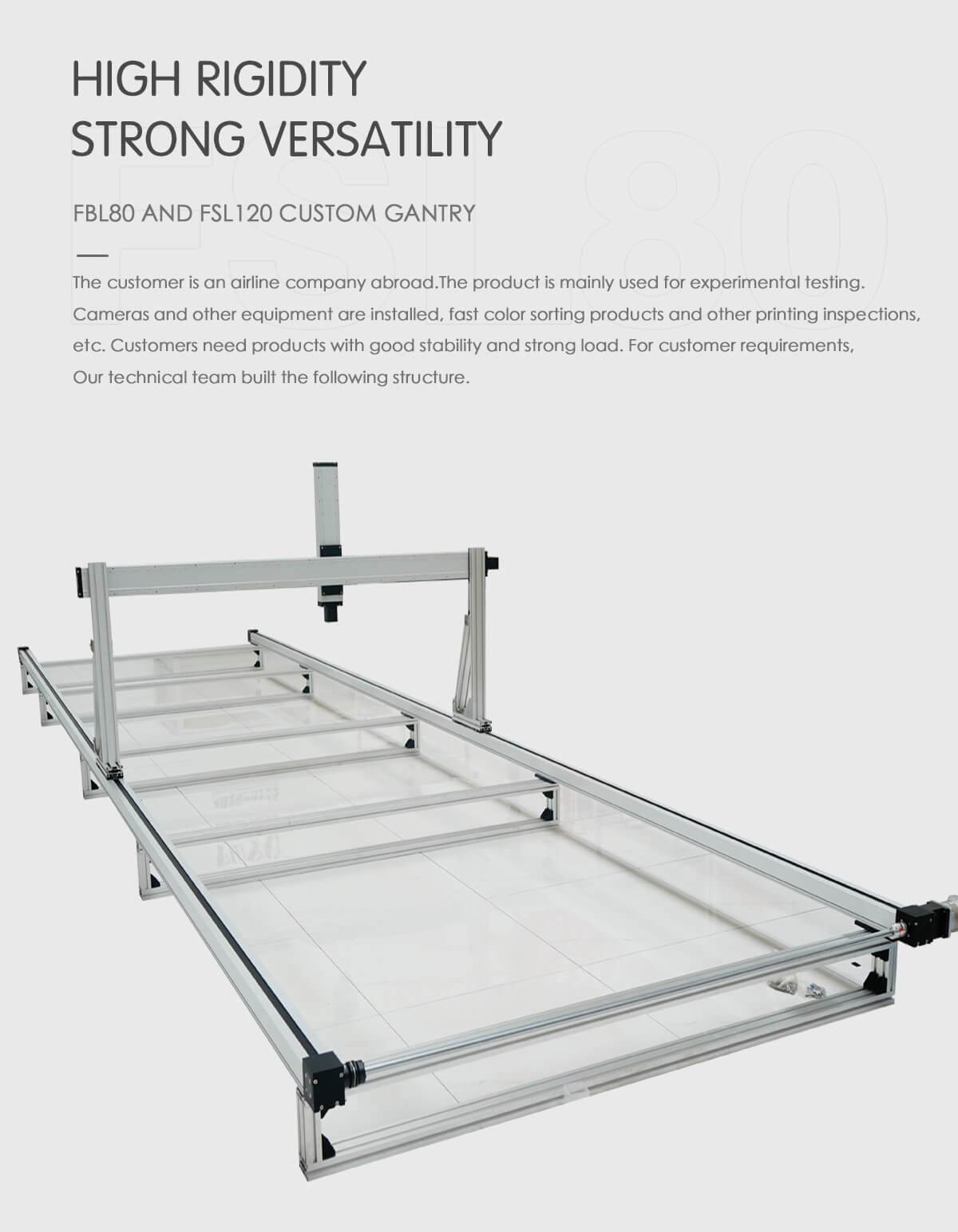

lt is suitable for enterprises that have requirements for accuracy, load and general special environments. The customer is an airline company abroad. The product is mainly used for experimental testing. Cameras and other equipment are installed, fast color sorting products and other printing inspections, etc. Customers need products with good stability and strong load. For customer requirements, our technical team built the following structure.

Series: FBL80FSL120IS-G

Stroke Range: 500mm-8000mm

Position Accuracy: 0.02mm-0.05mm

Max Speed: 500mm/s-3000mm/s

Max Load: 100kg

Ball Screw: G1610/G2020

Synchronous Wheel Circumference: 165mm

Send email to us

Product Detail

Company Profile

Previous: Nema23 Stepper Motor Driver FMDD50D40NOM Linear Motion

Next: Double Rails Support Flip Load Optional Servo Motor Ball Screw Linear Guide

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU Technology is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Multi-axis Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, IP65, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-4000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
