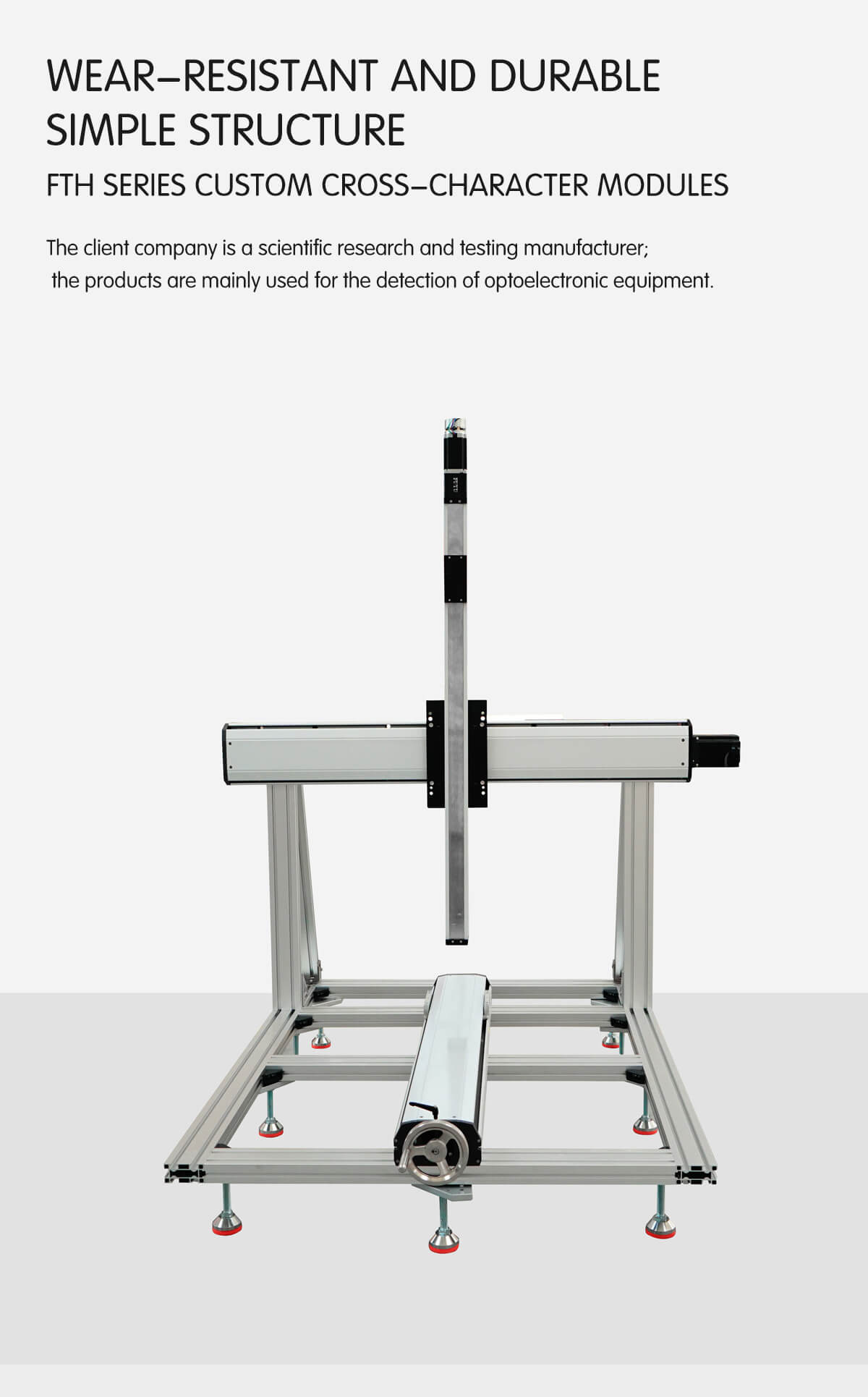

FUYU XYZ Stage Multi-axis Linear Positioning System for Photoelectric Inspection

Short Description:

Technical Feature

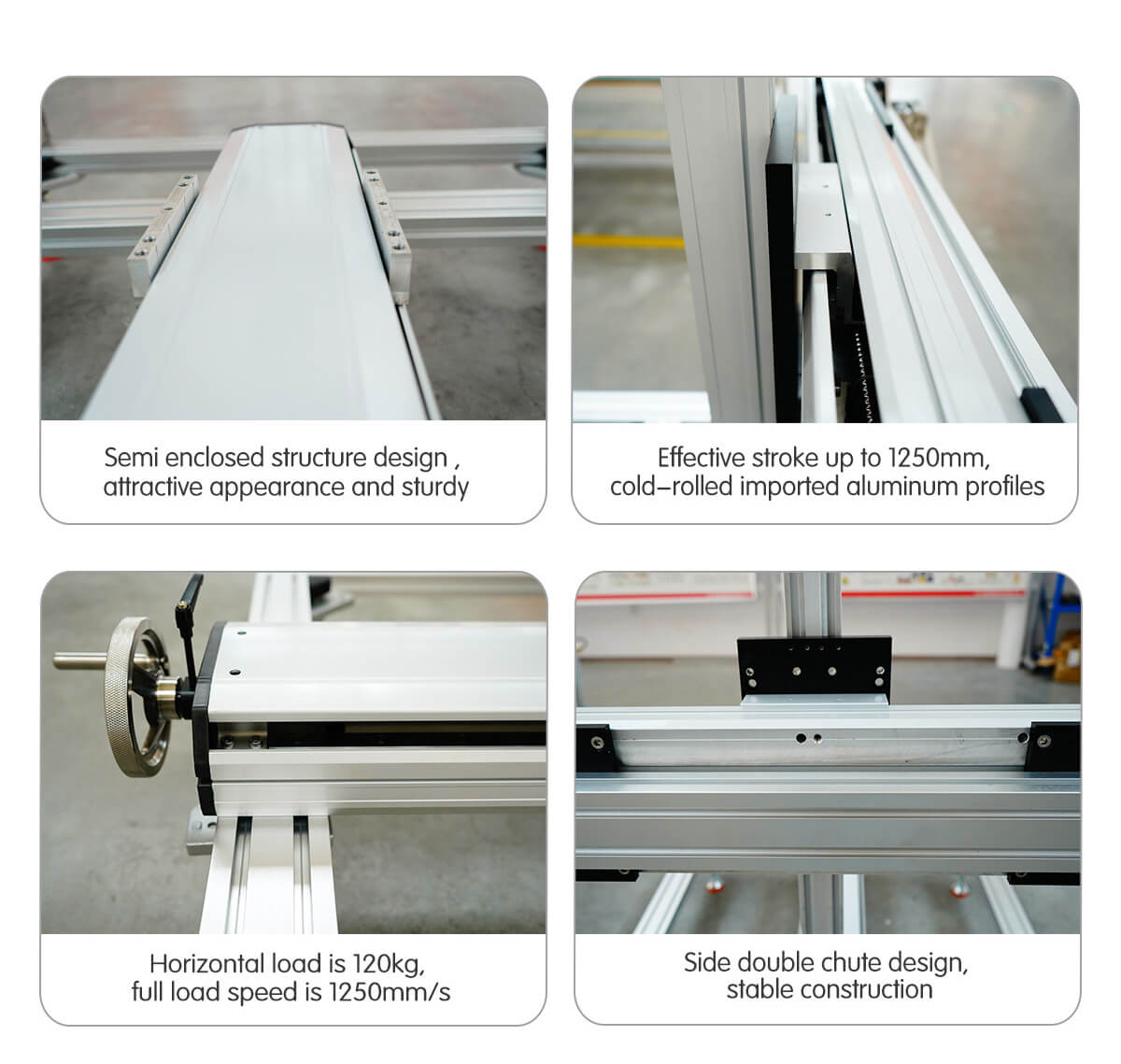

The double-track linear module developed by FUYU has a body width of 17cm, strong running stability, and a load of up to 120kg. It is mainly used for high-load and high-precision companies. The repeat positioning accuracy can reach ± 0.02mm. It is currently the most popular high-load product in the international market. The main body of the product has high rigidity, strong running stability and high precision retention.

Range of Application

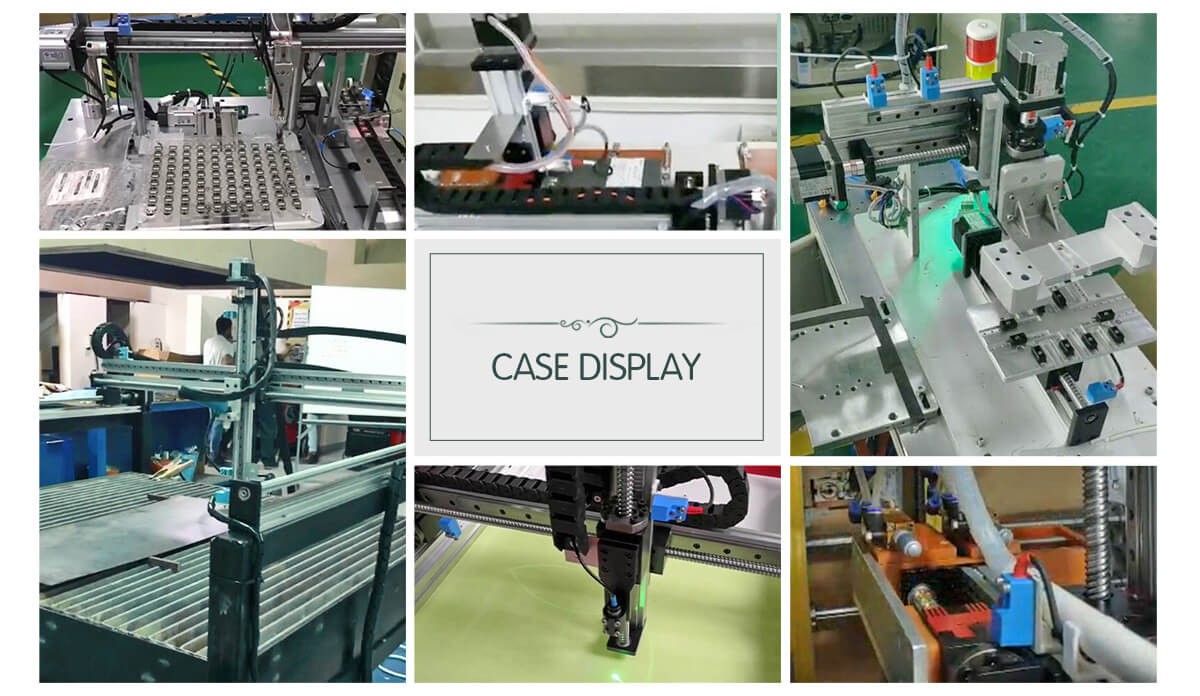

Laser cutting machine, PV back sheet cutting engraving machine,transportation mechanical arm, assistant device, Electric research test function demonstration, kinds of industrail automatic production line, kinds of precision machinery processing.
Industry automation for semiconductor device, LED online device, solar equipment, FPD equipment.

Series: FTH17IS-S

Stroke Range: 50mm-1500mm

Module Width: 170mm

Repeat Position Accuracy: 0.02mm

Lead: 5/10/20/25mm

Speed Range: 250/500/1000/1250mm/s²

Horizontal Load Capacity: 120/110/80/60kg

Vertical Load Capacity: 50/40/25/20kg

Send email to us Play video

Product Detail

Company Profile

企业展示_01

Previous: FUYU Double Track 3 Axis Ball Screw Linear Positioning System XYZ Stage

Next: Double Z Axis Linear Table Ball Screw Gantry System Vertical Rail Guide

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU Technology is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Multi-axis Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, IP65, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-4000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
