FUYU Multi-axis Ball Screw Linear Positioning System Dustproof XYZ Stage

Short Description:

Our customer is a manufacturer of production line machinery and equipment, and its products are mainly used for surface grinding, deburring, etc.
The application in metal grinding equipment requires a closed module that is dust-proof and corrosion-resistant. This model selection FSL120 has a repeat positioning accuracy of ±0.02mm, a maximum speed of 500mm/s, a maximum horizontal load of 100KG, and a vertical maximum load of 50KG. Precision aluminum base, high rigidity for large loads. It has the advantages of high precision, accurate positioning and corrosion resistance.

FSL120XYZ-L is a gantry structure module tailored by Fuyu Technology according to the actual application scenarios of the project and customer needs.

The structure is simple, and the closed module is dust-proof and corrosion-resistant.
The effective travel of X axis is 600mm
The effective travel of the Y axis is 850mm
The effective travel of Z axis is 600mm

Series: FSL120IS-SL

Stroke Range: 50mm-1500mm

Position Accuracy: 0.02mm

Max Speed: 500mm/s

Max Load: 100kg

Ball Screw: G1610/G2020

Send email to us

Product Detail

Company Profile

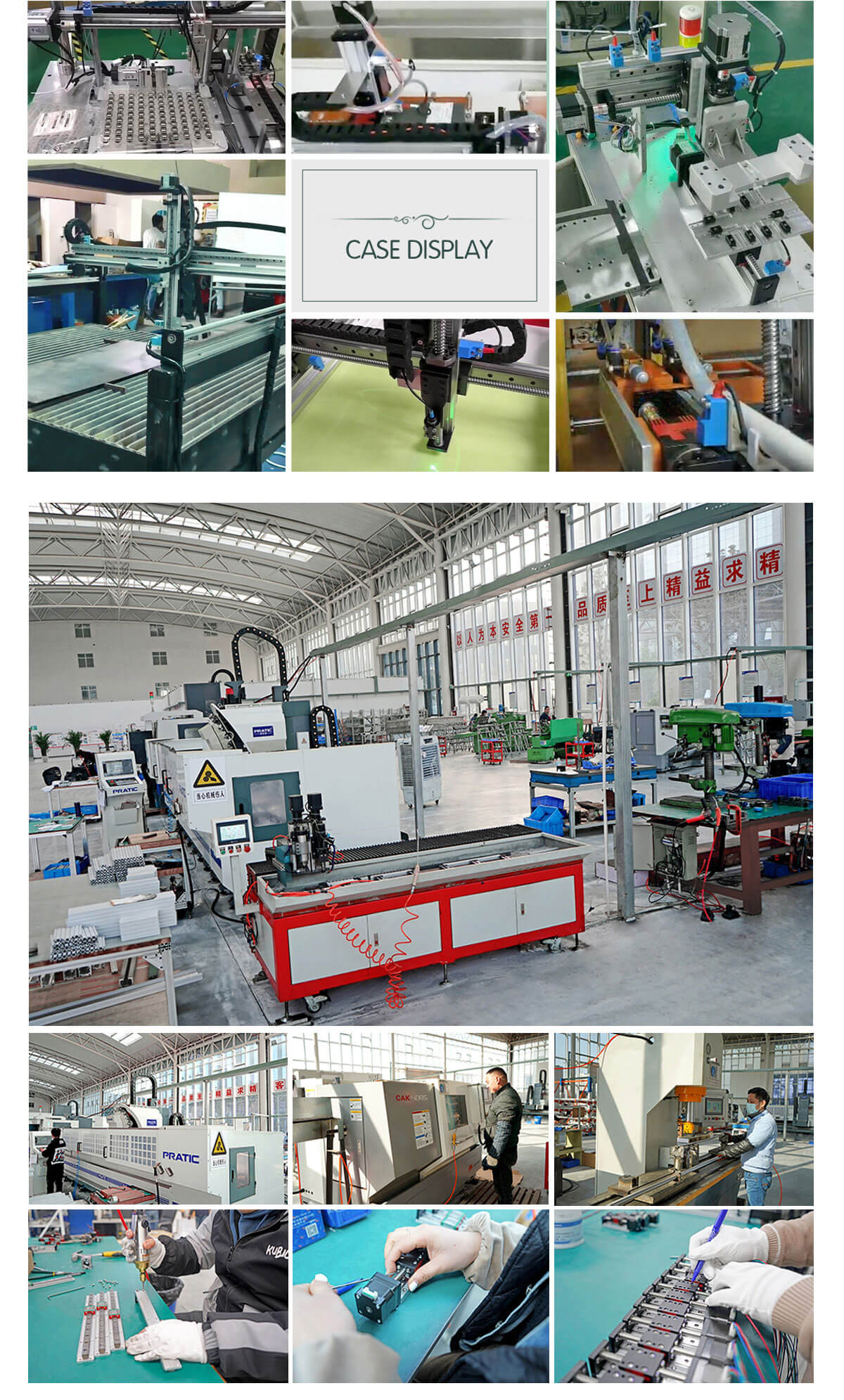

120非标详情页英文_04

Previous: FUYU Linear Gantry Robot Manufacturer for Multi-Axis Automation Industry

Next: Custom Application Ballscrew Guide Rail Side Mounted Motor Dustproof Linear Positioning Stage

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU Technology is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Multi-axis Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, IP65, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-4000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
