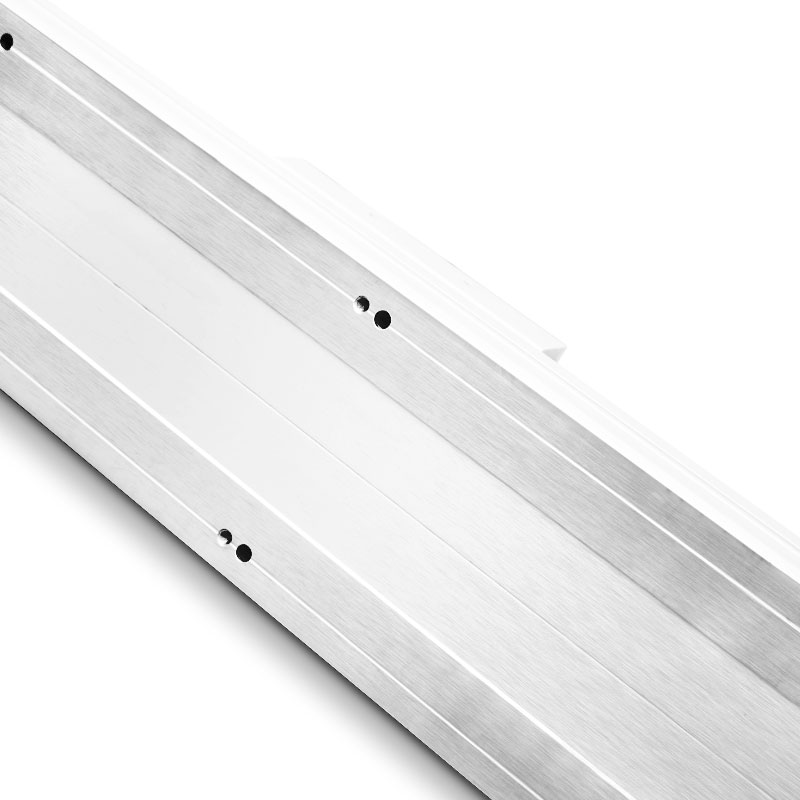

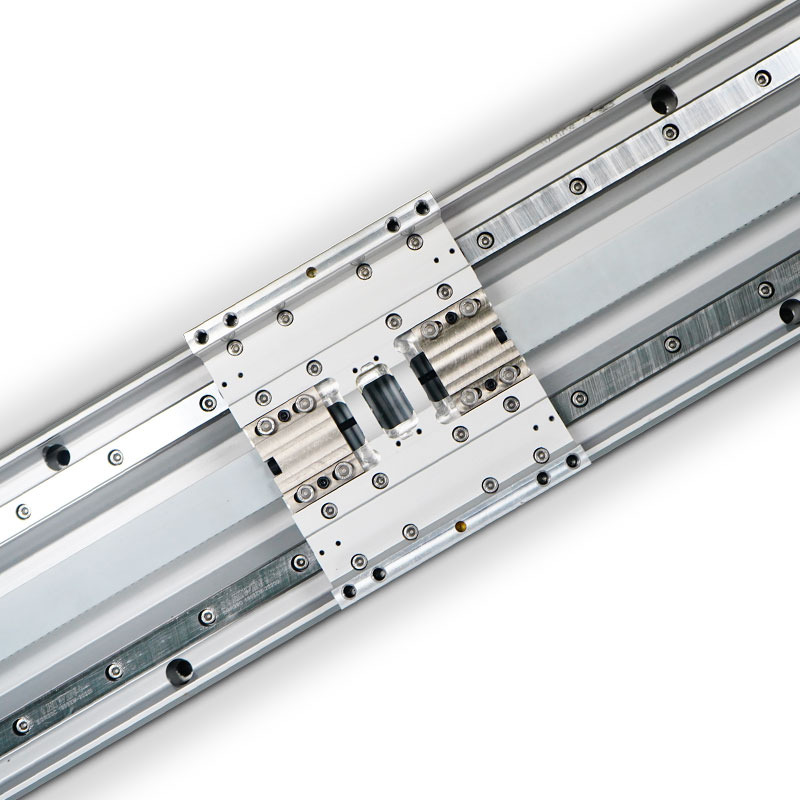

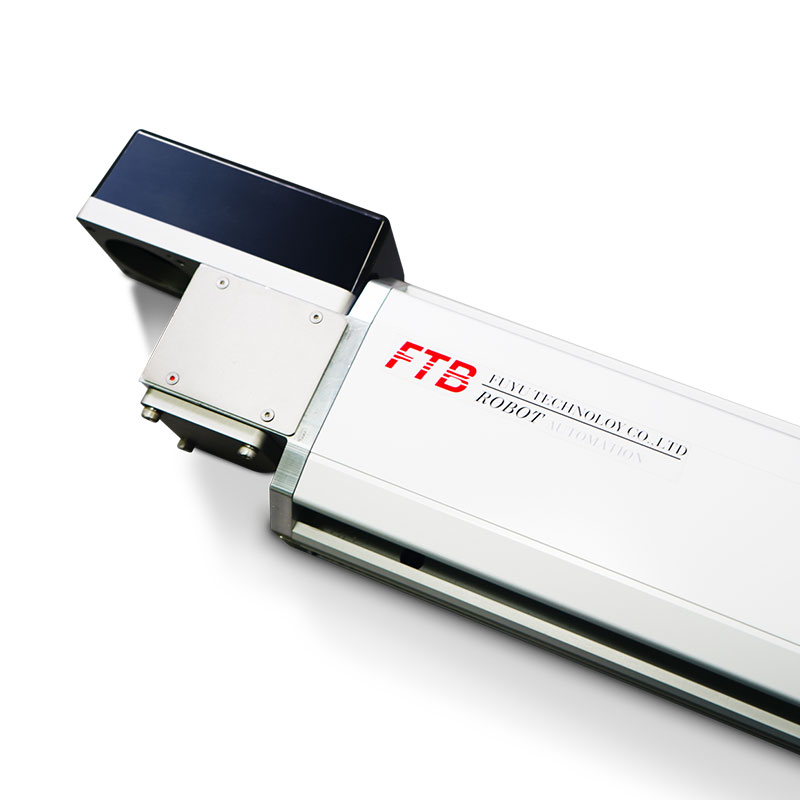

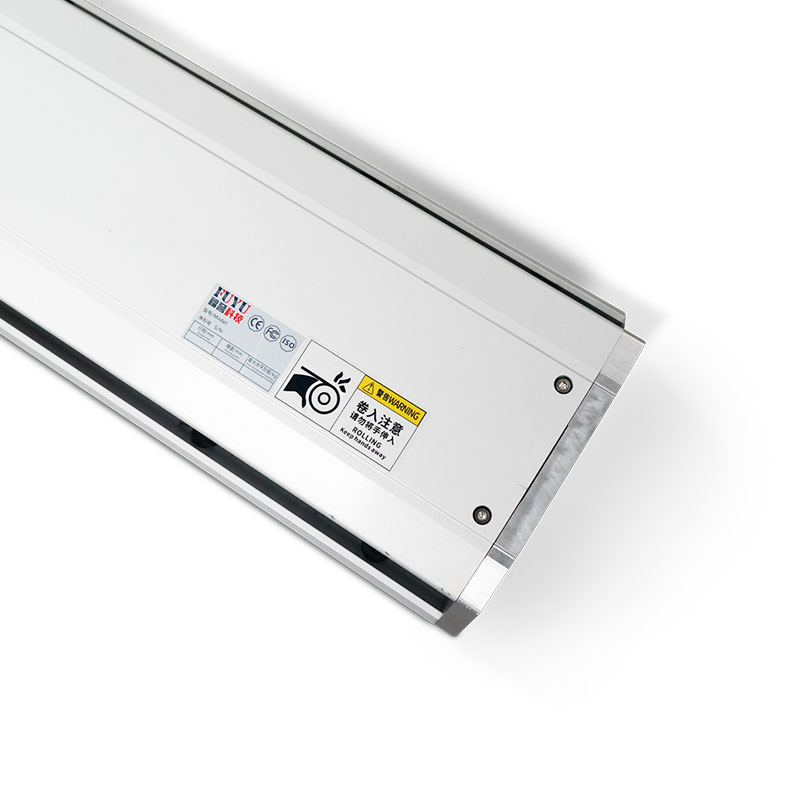

    Factorysale Linear Actuator Double Track Heavy Duty Rail Guide Belt Module

    Short Description:

    Main Feature

    The double-track long-stroke developed by FUYU, horizontal load can reach up to 45kg, meet the user’s high requirements for running speed and stability, and the product can reach up to 3500mm effective stroke, the product body structure is semi-closed, and the belt collides No deformation, solid body structure is the first choice for high-efficiency enterprises.

    Application Area

    Laser cutting machine, PV back sheet cutting engraving machine,transportation mechanical arm, assistant device, Electric research test function demonstration, kinds of industrail automatic production line, kinds of precision machinery processing.
    Industry automation for semiconductor device, LED online device, solar equipment, FPD equipment.

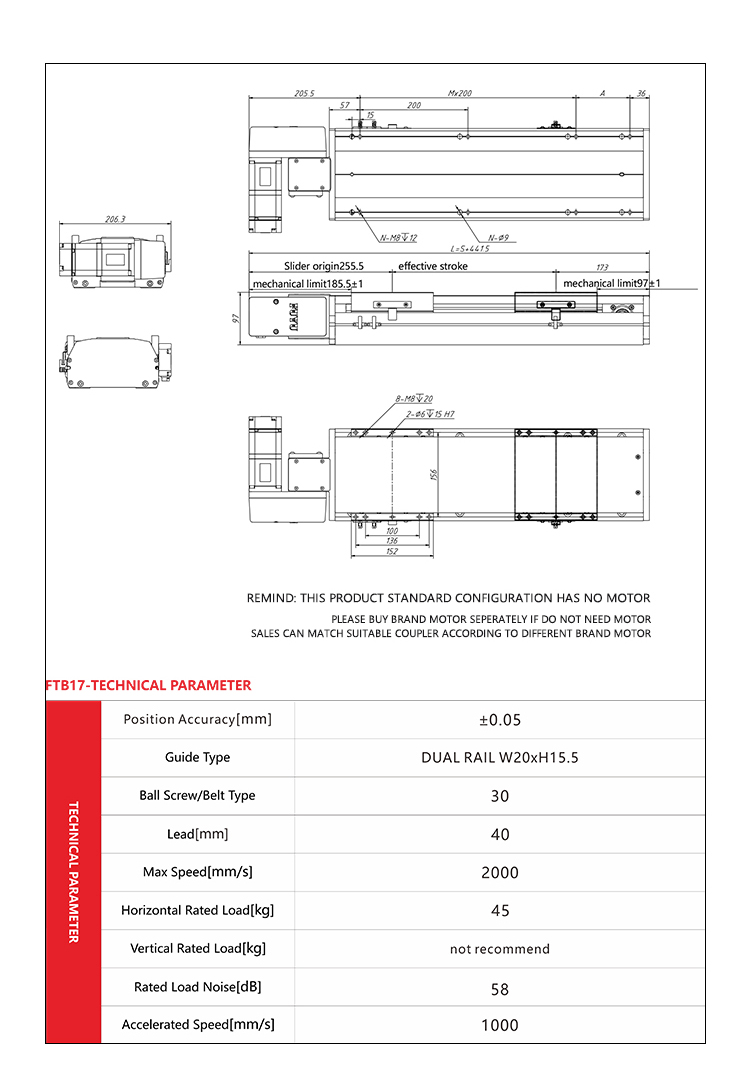

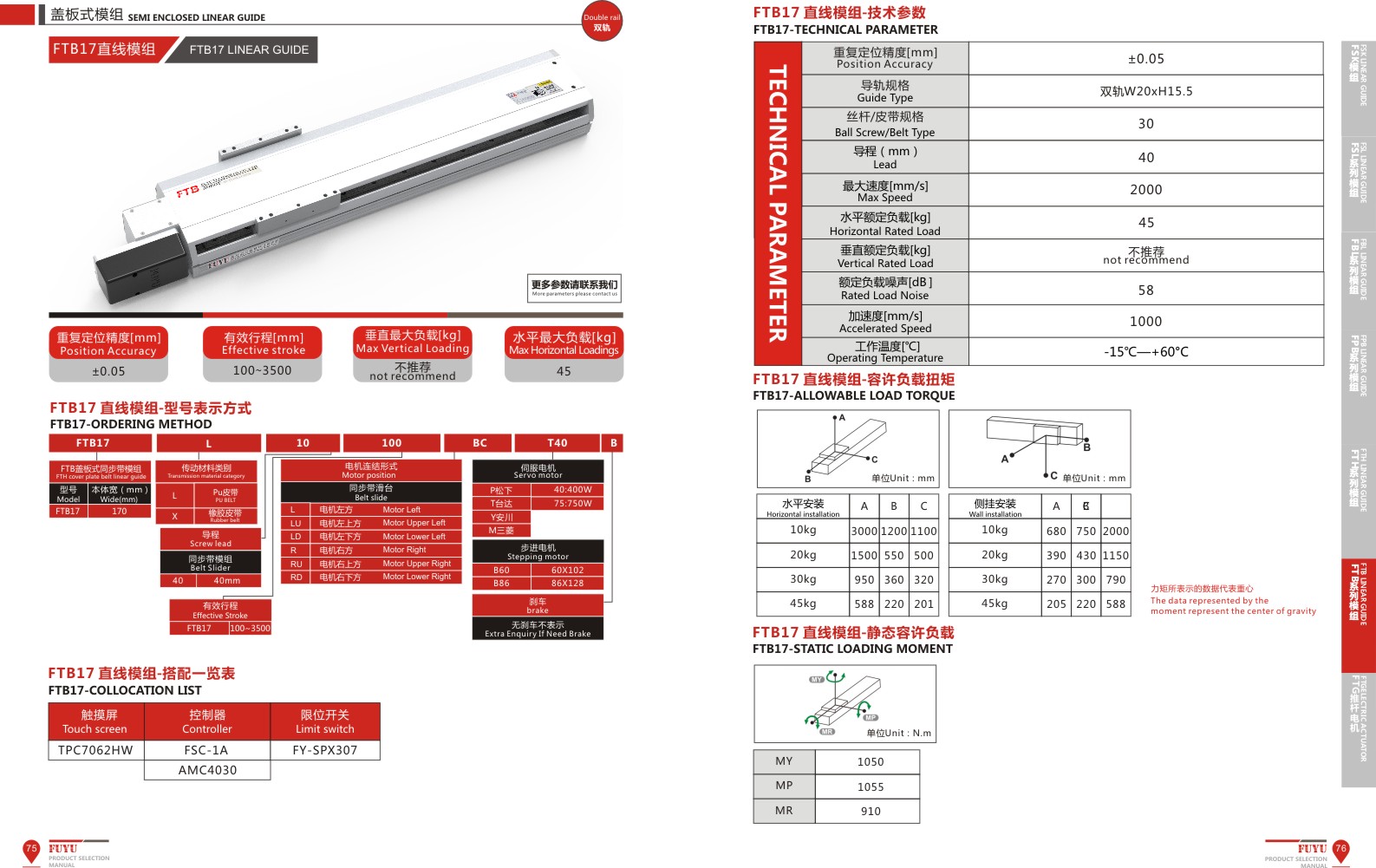

  • Series: FTB17
  • Stroke Range: 100mm-3500mm
  • Belt Width: 30mm
  • Lead: 40mm
  • Repeat Position Accuracy: 0.05mm
  • Horizontal Load Capacity: 45kg
  • Speed Range: 2000mm/s
  • Noise: 58dB
  • Product Detail

    Company Profile


    Factory Introduction Product Certificate Research and Development Technology Service

    CHENGDU FUYU TECHNOLOGY CO.LTD

    FUYU Technology is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Multi-axis Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, IP65, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-4000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
