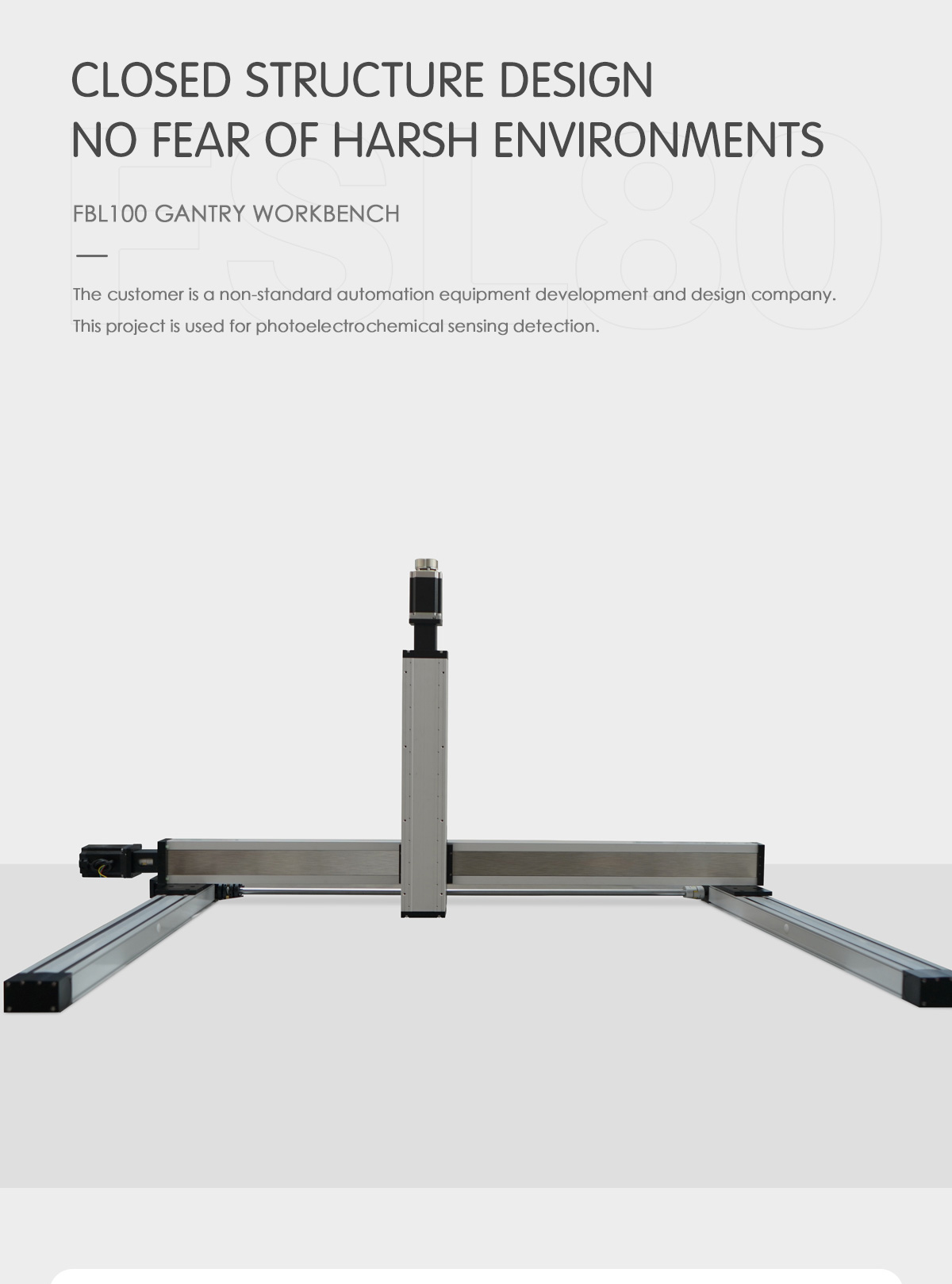

Dustproof Linear Gantry System High Speed Long Stroke Belt Driven Rail Guide

Short Description:

Main Feature

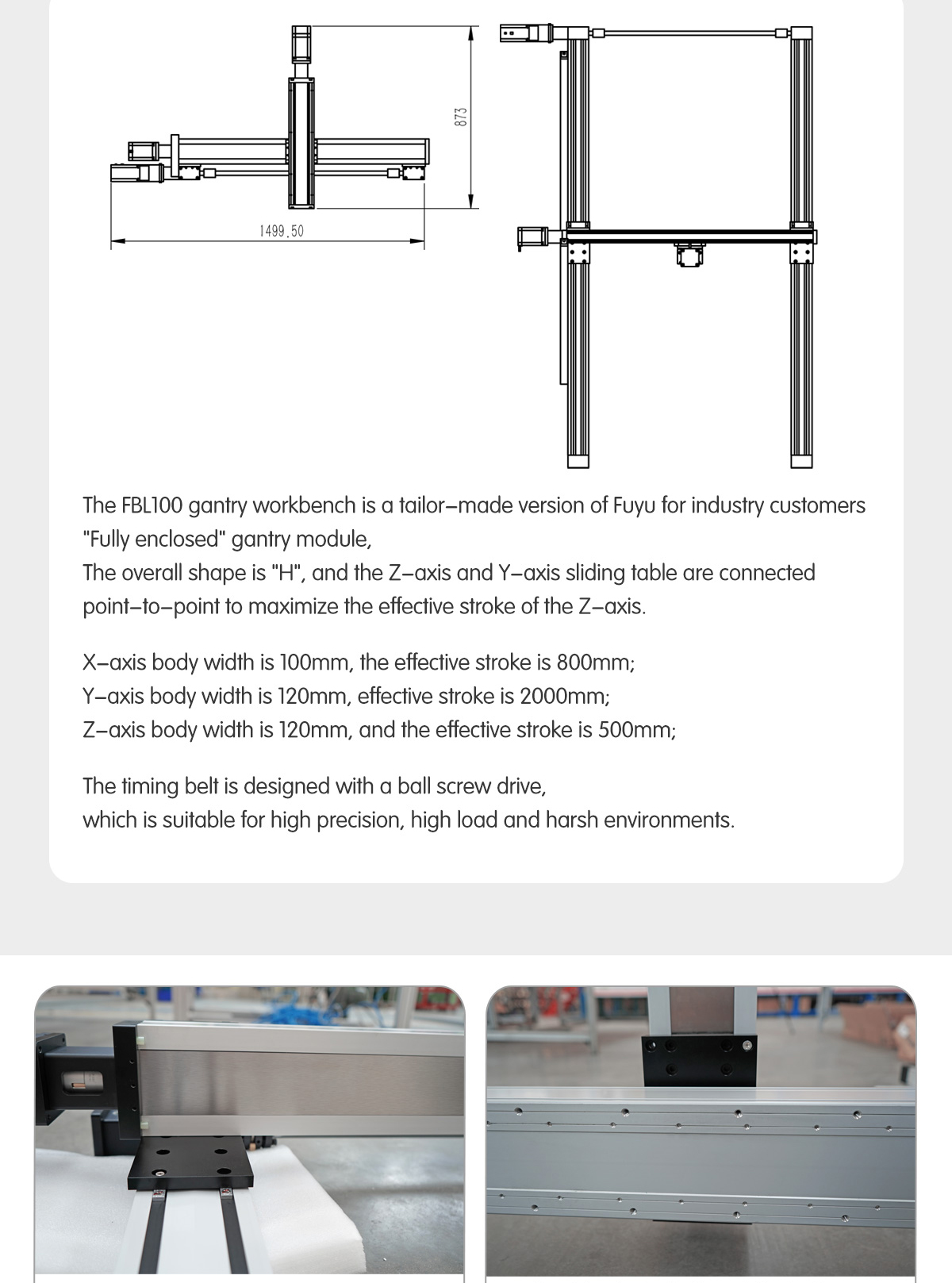

FDBL100 linear module, fully enclosed structure, body width 100mm, good rigidity, low noise, lightweight, high rigidity structural design, long life, short setting time, high positioning accuracy.

Application Area

Generally used for precise positioning detection, laser plus (laser cutting/aser marking/laser engraving/laser drilling, etc.) precision assembly, precision machine tools, semiconductor production equipment, positioning detection, electronic production equipment, and 3D printing equipment.

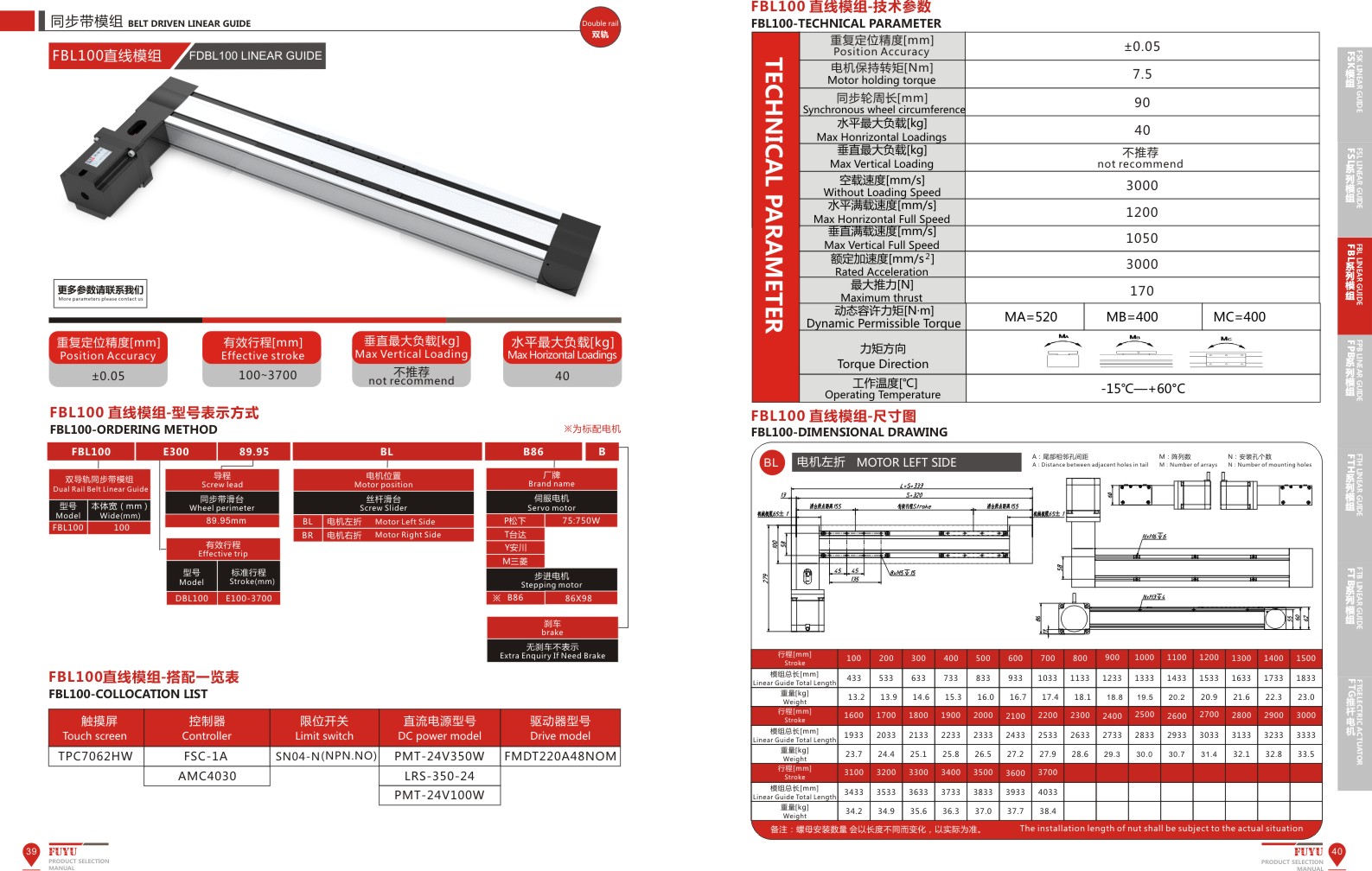

Series: FBL100IS-L

Stroke Range: 200mm-3000mm

Position Accuracy: 0.05mm

Max Speed: 4000mm/S

Max Load: 40kg

Synchronous Wheel Circumference: 89.95mm

Send email to us Download To PDF Play video

Product Detail

Company Profile

Previous: Heavy Duty Cartesian Robot Ball Screw Linear Positioning Stage for Laboratory Detection

Next: Stepper Motor Driver for Mini Linear Motion System FSK30 Series

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU Technology is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Multi-axis Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, IP65, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-4000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
