Cartesian Robot Linear Motion Multi-axis Positioning XYZ Stage Gantry System

Short Description:

The customer is a custom clothing manufacturer.
This linear module positioning system is used for garment printing. In order to ensure the accuracy of printing clothing,
The terminal equipment is required to have a compact structure and a protective design that meets industry standards.
Our engineering team designed this module based on years of custom R&D experience.
Its special construction method supports a load capacity of 30kg and a running speed of 80-400mm/s.

Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, RoHS, ISO9001 Certification.
Wide Variety of Ready-to-Ship Products
Quantity Discounts Starting at 10 pcs
Custom OEM Solutions
Programming Services
If need OEM or Custom Design, please check here – https://www.fuyumotion.com/industry-solution

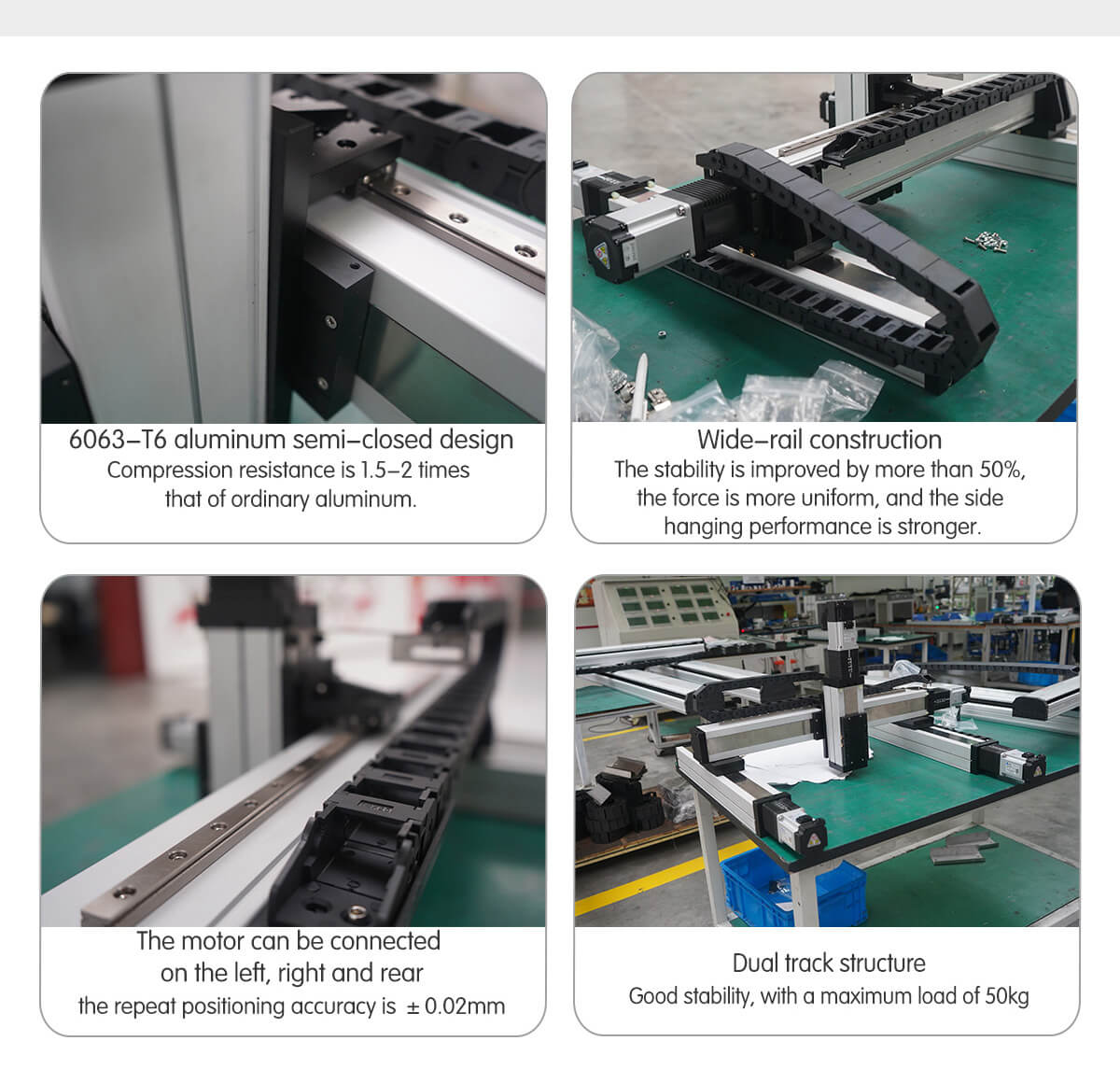

Series: FSL80IS-L

Stroke Range: 50mm-1200mm

Position Accuracy: 0.02mm

Max Speed: 220mm/s

Max Load: 40kg

Ball Screw: G1610

Send email to us Download To PDF Play video

Product Detail

Company Profile

Previous: Cross Slide Ballscrew Guide XY Stage Linear Robot 2 Axis Motion Table

Next: Factory Wholesale CNC Linear Module Kit Free-cutting Length Rail High Precision Guide with Low Friction Slide Block

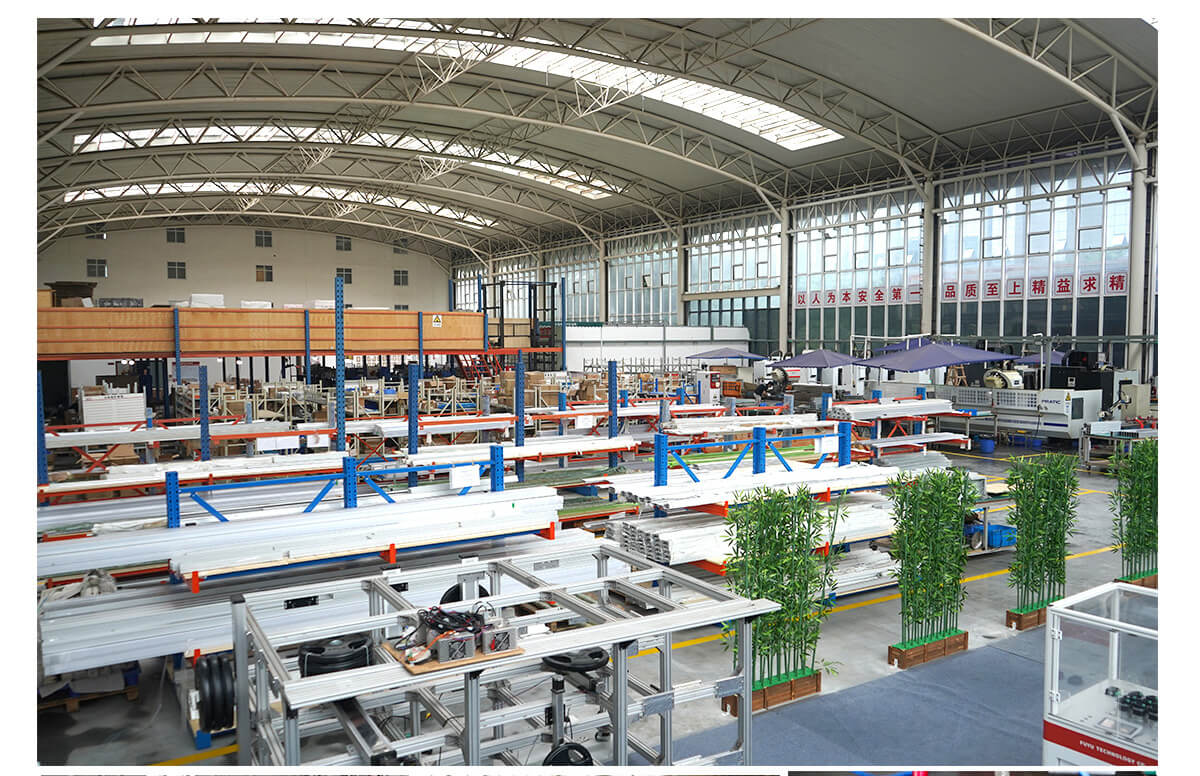

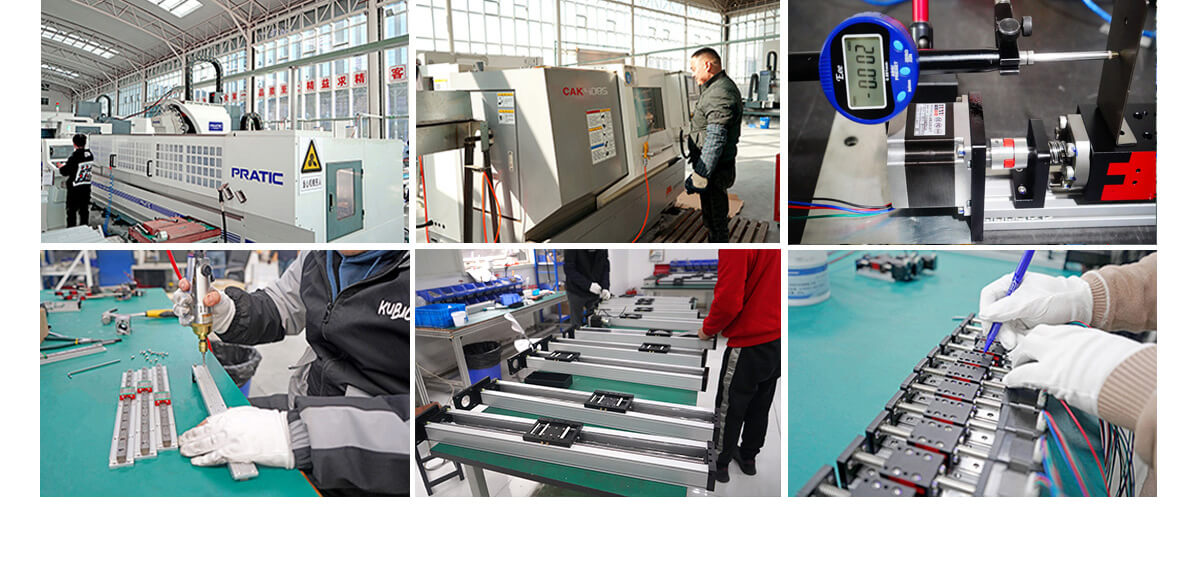

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU Technology is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Multi-axis Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, IP65, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-4000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
