Ball Screw Rail Guide Linear Motion XYZ Positioning Stage Gantry Robot

Short Description:

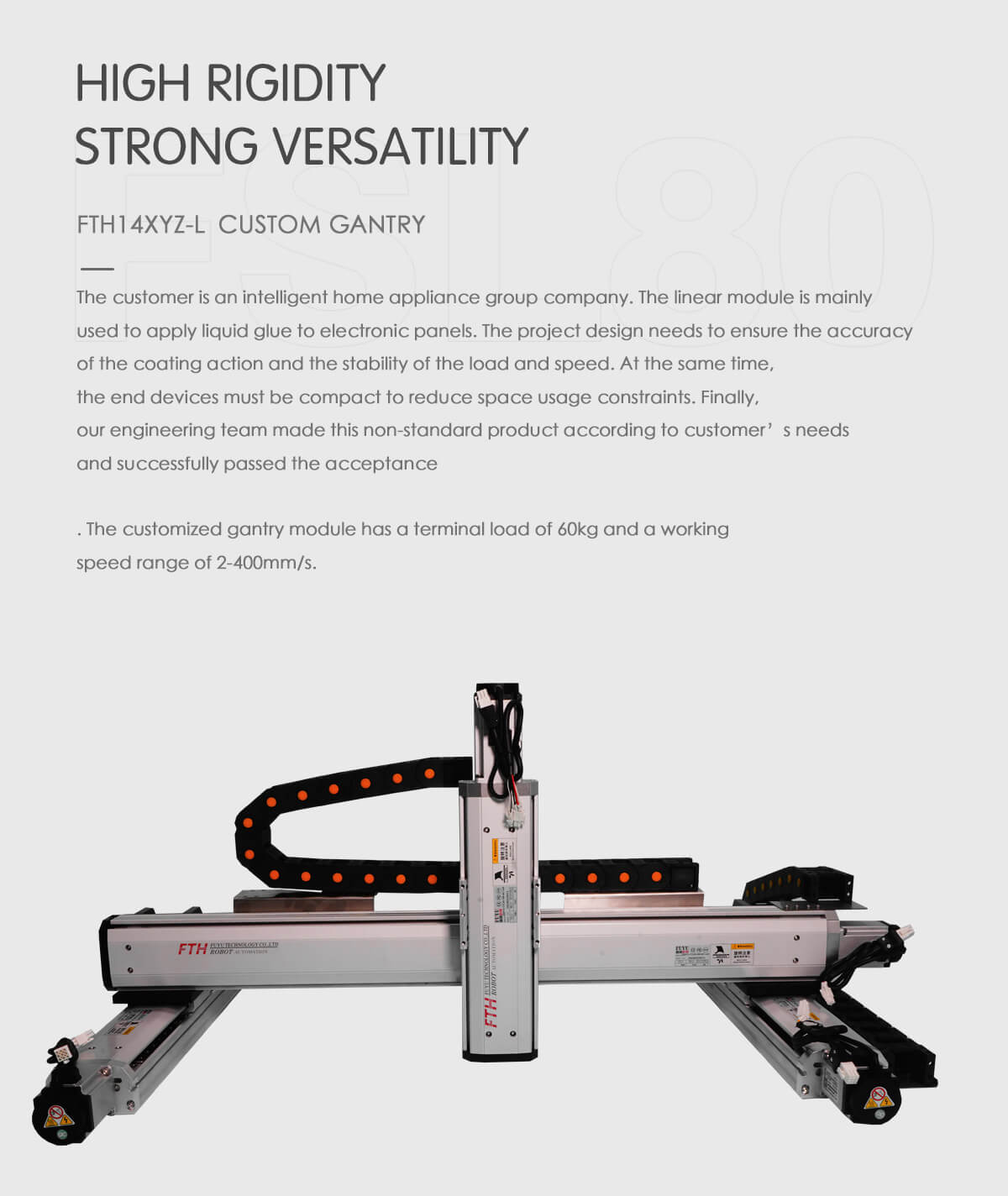

The customer is a smart home appliance group company.
Linear motion modules are used to apply infrared glue to electronic panels.
Project design needs to ensure accuracy of movement, stability of load, and continuity of speed. At the same time, terminal equipment must be compact to reduce space usage.
In the end, our engineering team produced this non-standard product according to customer needs and successfully passed the acceptance inspection, the customized gantry module workbench has a load capacity of 60kg and a working speed range of 2-400mm/s.

Series: FTH14

Stroke Range: 50mm-1250mm

Module Width: 135mm

Repeat Position Accuracy: 0.02mm

Lead: 5/10/20mm

Speed Range: 250/500/1000mm/s²

Horizontal Load Capacity: 110/90/40kg

Vertical Load Capacity: 30/25/10kg

Send email to us Download To PDF Play video

Product Detail

Company Profile

Previous: Double Shaft Cores Thin Slide High Speed Rail Long Stroke Guide Belt Driven Actuator Linear Motion Positioning XYZ Stage

Next: Grating Linear Motor Gantry Robot XYZ Stage Electric Actuator Magnetic Grid Positioning System

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU Technology is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Multi-axis Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, IP65, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-4000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
