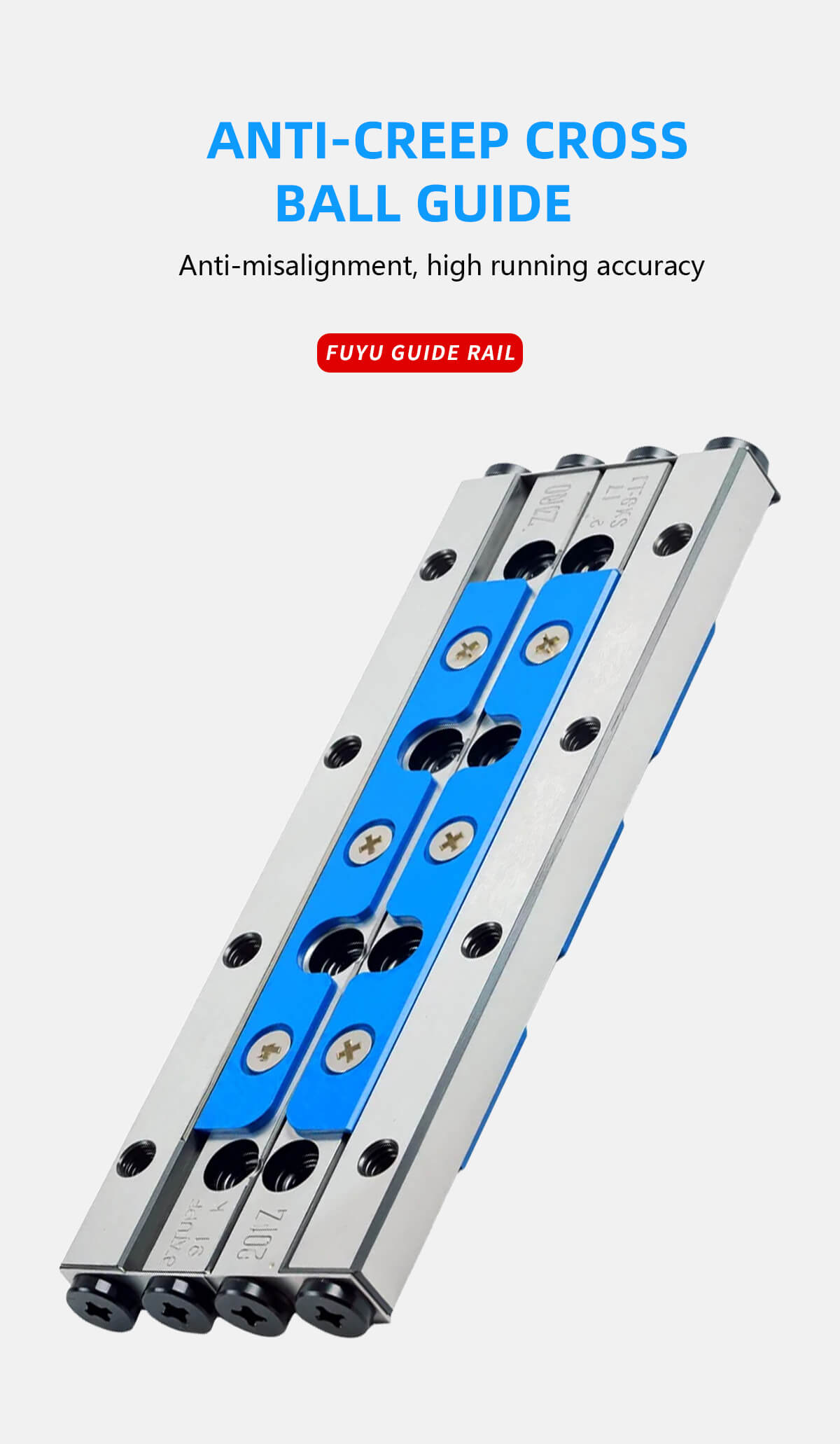

    Anti-creep Cross Ball Guide Anti-fretting Rail High Rigidity Linear Motion

    Short Description:

    The Anti-Creep Cross Roller Guide Rail is an advanced solution designed for applications in measurement instruments, automated production lines, and precision motion platforms. It is also gaining traction in the domestic semiconductor industry, where it is being used in small batches, particularly in equipment such as image measuring instruments, die bonders, and wire bonders.

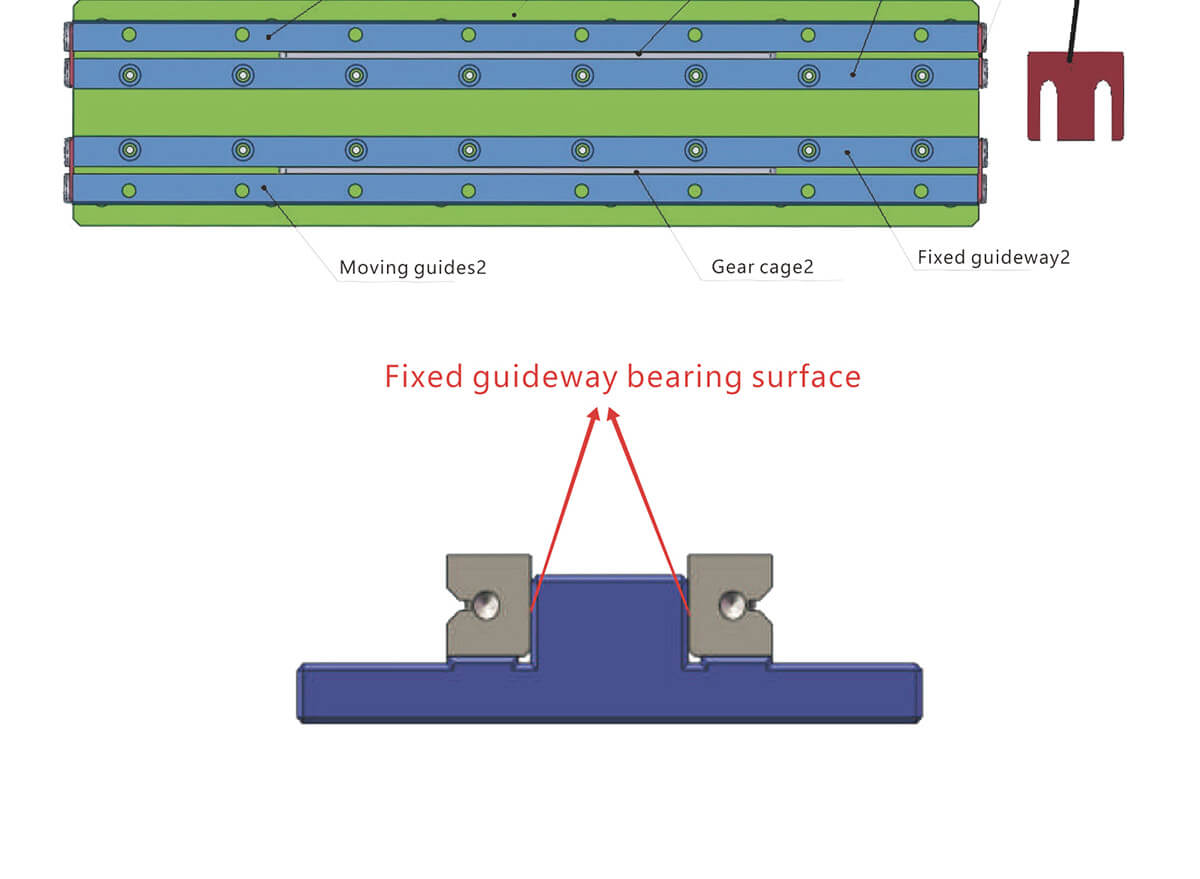

    This upgraded version of the cross rail addresses a common issue found in standard cross rails: the tendency for the two sets of rollers to become unsynchronized during high-speed, high-frequency, or vertical applications. This synchronization problem can lead to sliding, misalignment, or deviation of the roller cage, ultimately affecting the travel accuracy and performance of the rail system.

    The Anti-Creep Cross Roller Guide Rail features an innovative design that ensures superior stability and reliability, outperforming many international brands. Its advanced structure effectively eliminates the sliding phenomenon, ensuring smooth and precise motion even under demanding conditions.

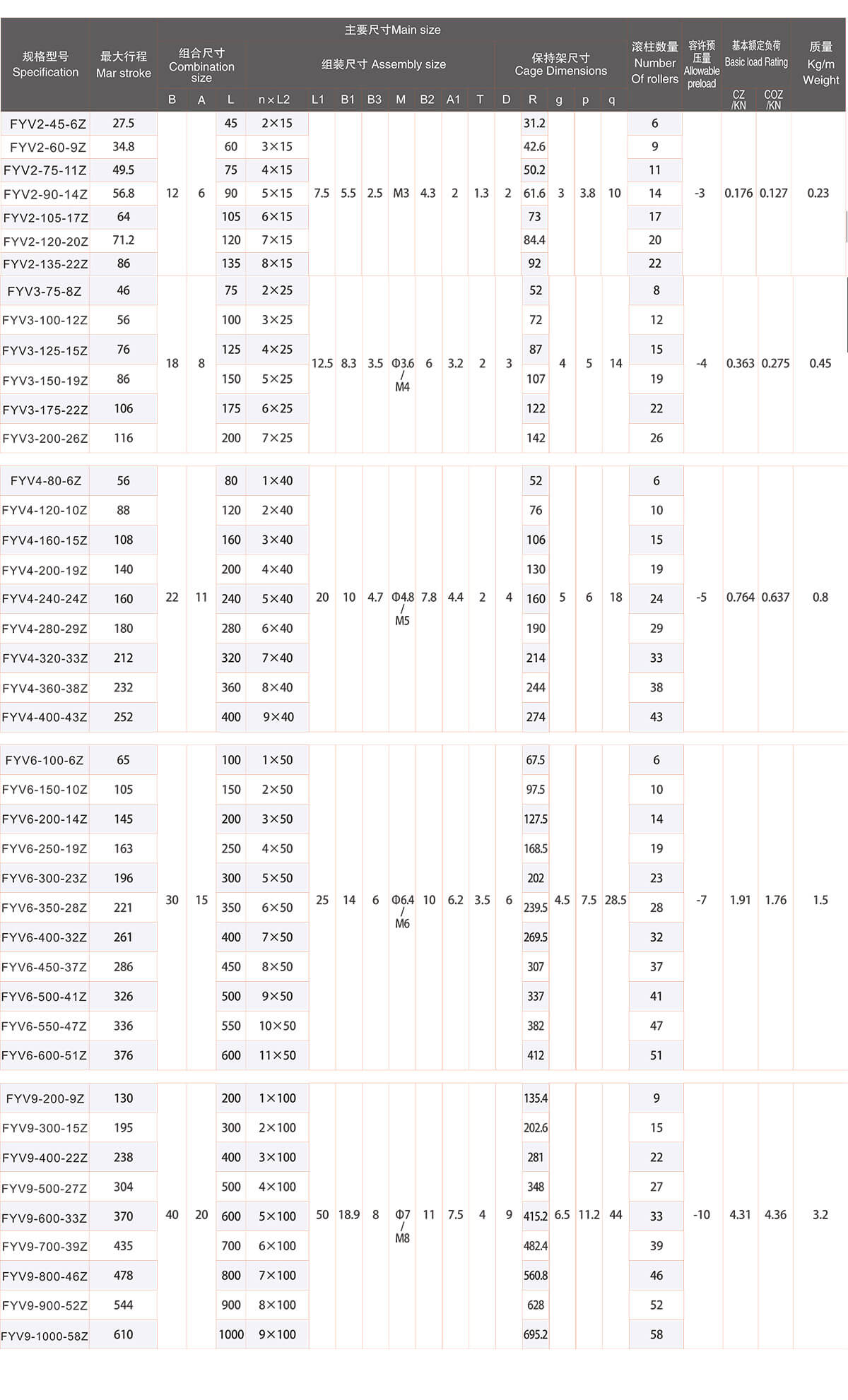

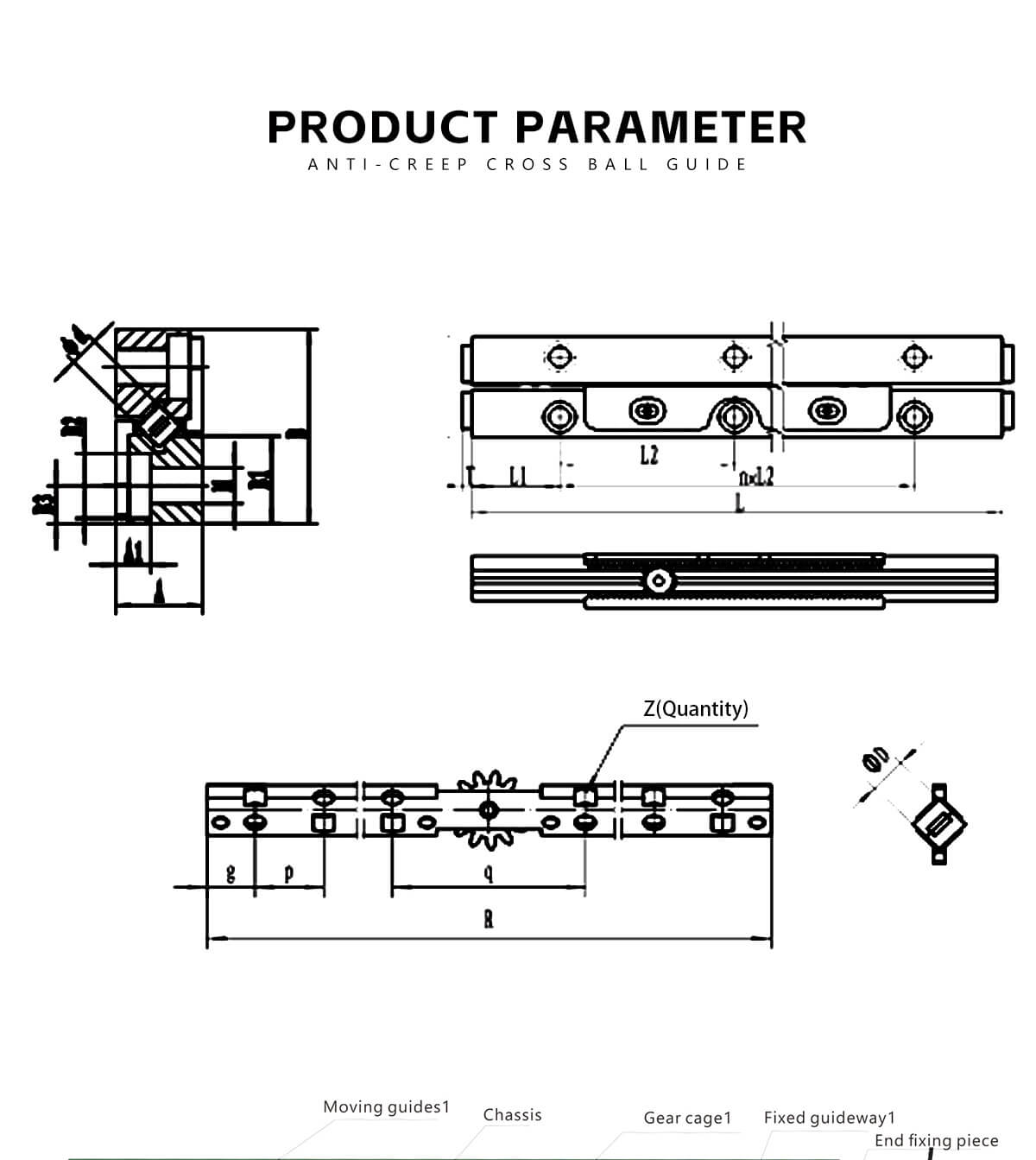

  • Model: FYV3/4/6/9
  • Number of Rollers: 6 - 58
  • Stroke Length: 28mm - 610mm
  • Product Detail

    Company Profile

    Anti-creep-Rail-Guide_01 Anti-creep-Rail-Guide_02 Anti-creep-Rail-Guide_03 Anti-creep-Rail-Guide_04 Anti-creep-Rail-Guide_05 Anti-creep-Rail-Guide_06 Anti-creep-Rail-Guide_07 Anti-creep-Rail-Guide_08

    In summary, the Anti-Creep Cross Roller Guide Rail is a high-performance upgrade tailored for industries requiring exceptional precision and reliability. Its ability to maintain synchronization and stability makes it an ideal choice for advanced applications in measurement, automation, and semiconductor manufacturing.
